Brand: Sandvik Coromant

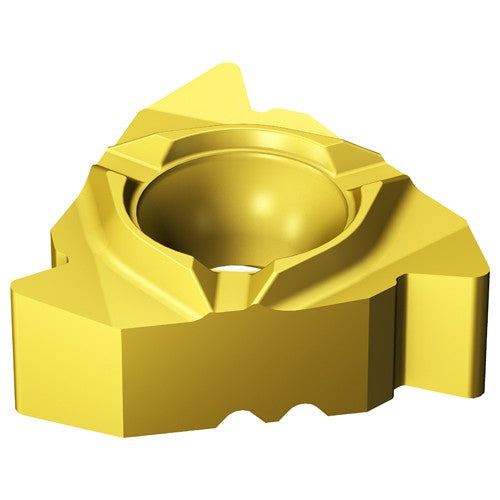

Sandvik Coromant FF8726653828 266RL-16VM01C001M 1135 COROTHREAD 266 INSERT
SKU: FTS-FF8726653828
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
FF8726653828 266RL-16VM01C001M 1135 COROTHREAD 266 INSERTFull Description
| Inscribed Circle Diameter (IC) | 9.52 mm | Insert Style | 266RL-16VM01C001M |
| Corner Radius (RE) | 0.06 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.97mm | Cutting Item Count (CICT) | 1 |
| Grade | 1135 | Thread Pitch Minimum (TPN) | 1 mm |
| Cutting Edge Material | Carbide | Thread Pitch Maximum (TPX) | 2 mm |
| Cutting Position | Internal | Hole Diameter | 4.4 mm |
| Applicable Material | Steel|Non-Ferrous Metals|Hi-Temp Alloys|Cast Iron|Stainless Steel |
