Brand: Sandvik Coromant

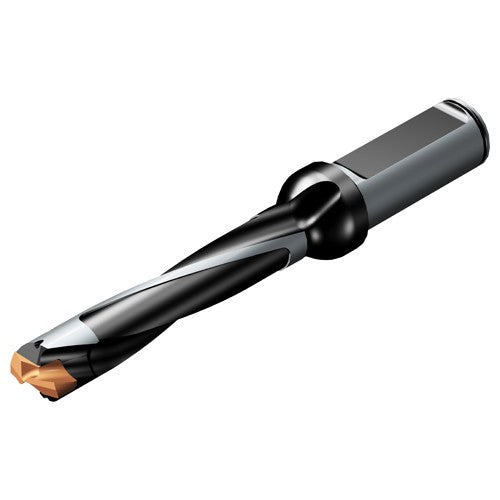

Sandvik Coromant FF8387066050 870-2000-20LX1-5 CORODRILL 870
SKU: FTS-FF8387066050
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
FF8387066050 870-2000-20LX1-5 CORODRILL 870Full Description
| Cutting Diameter (DC) | 0.823" | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 4.26" | Cutting Diameter Minimum (DCN) | 0.787" |
| Connection Diameter Machine Side (DCONMS) | 1" | Cutting Diameter Maximum (DCX) | 0.826" |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Tool Type | 5xD | Helix Angle | 20Degrees |
| Protruding Length (LPR) | 4.37" | Body Material | Steel |
| Functional Length (LF) | 5.072" | Decimal Equivalent | 0.823" |
| Overall Length (OAL) | 7.402" | Model Number | 870-2000-20LX1-5 |
| Coolant Supply Property (CSP) | Coolant Thru |
