Brand: FREER NAAMS

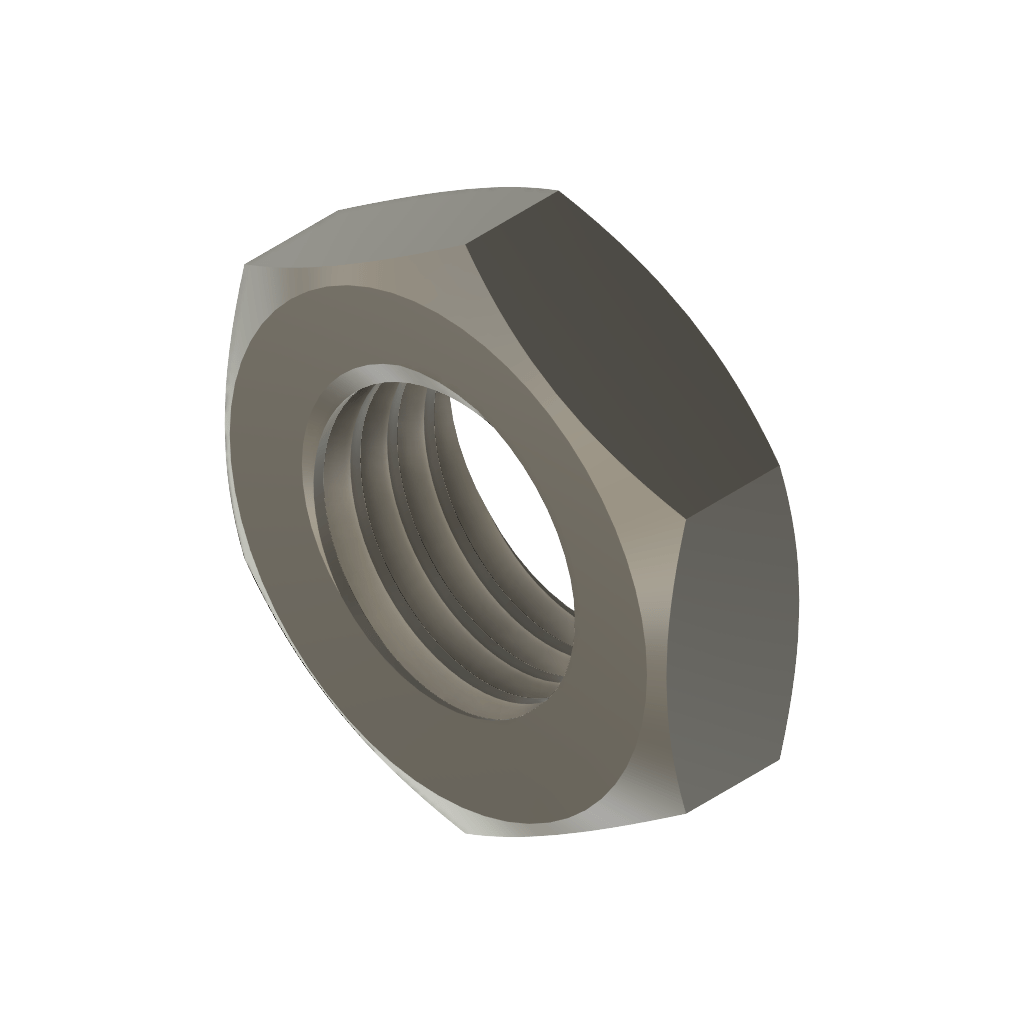

NAAMS Hexagon Nut F473046 M30 x 3.5

SKU: FN-F473046
MPN: F473046

$4.77
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**

Looking for CAD models?
Request NAAMS CAD Models

Short Description

Discover the incredible value and power of the NAAMS Hexagon Nut F473046 M30 x 3.5, a fastener component that is essential for all your hexagon nut needs. With coarse threads and made from the highest quality ASTM A563M Class 12 material, this nut is the perfect choice for any project.

Full Description

FREER NAAMS HEXAGON NUT F473046 M30 x 3.5

ASTM A563M Class 12

ANSI B18.2.4.5M

Coarse Threads

Nom. nut & thread pitch	S width across flats		E width across corners		M thickness ANSI B18.2.4.2M		Dw bearing face
Nom. nut & thread pitch	Max	Min	Max	Min	Max	Min	Min
M30 x 3.5	46	45	53.12	50.85	15	13.9	42.7
