Brand: FREER NAAMS
NAAMS Hexagon Nut F423046 M30 x 3.5
SKU: FN-F423046
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
The NAAMS Hexagon Nut F423046 M30 x 3.5 is a fastener component that is perfect for any project! Its Coarse Threads, made from the highest quality ASTM A563M Class 12 material, ensure durability and strength. Get yours now and see the results for yourself!
Full Description

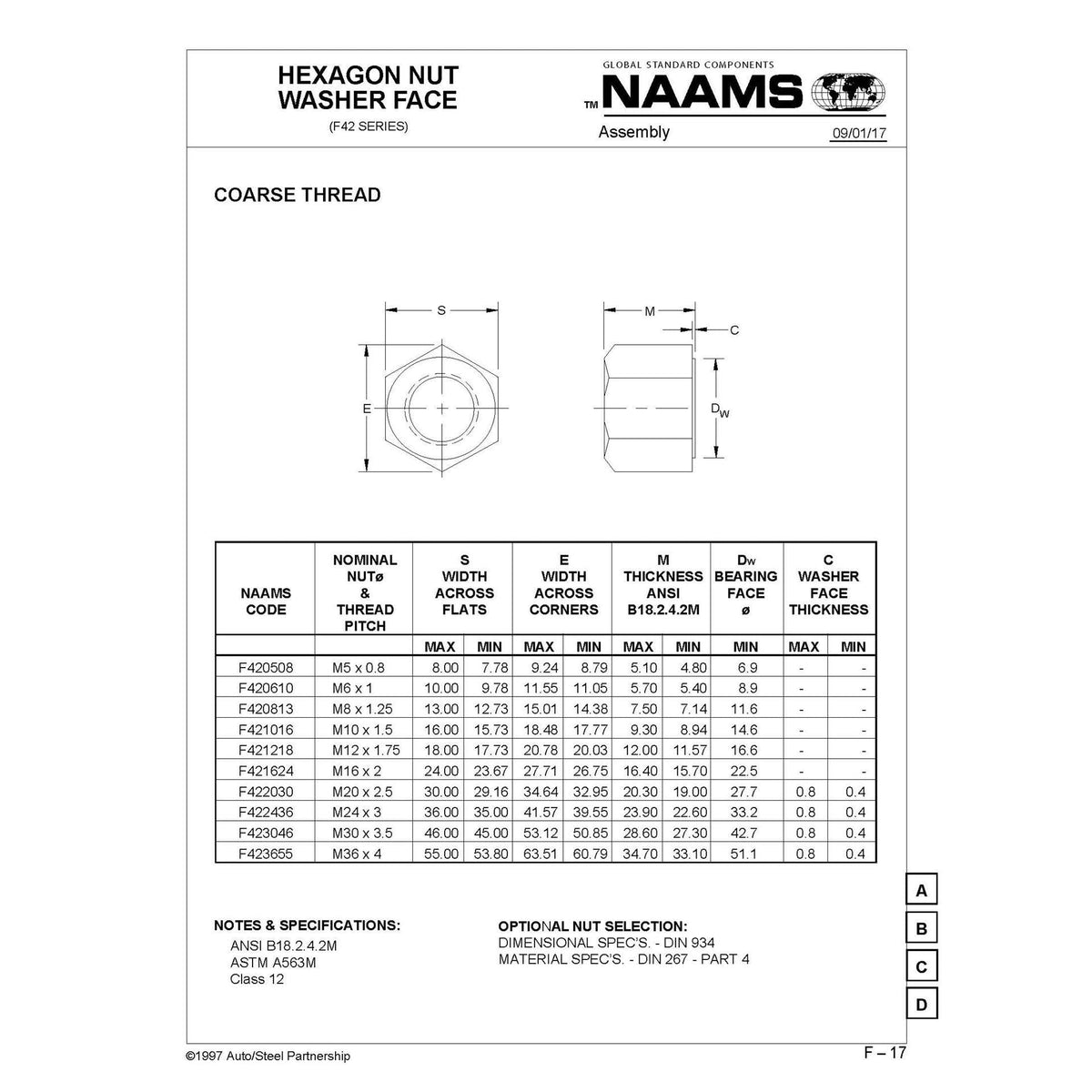

FREER NAAMS HEXAGON NUT F423046 M30 x 3.5
ASTM A563M Class 12
ANSI B18.2.4.2M
Coarse Threads
| Nom. nut & thread pitch |
S width across flats | E width across corners | M thickness ANSI B18.2.4.2M | Dw bearing face | |||
| Max | Min | Max | Min | Max | Min | Min | |
| M30 x 3.5 | 46 | 45 | 53.12 | 50.85 | 28.6 | 27.3 | 42.7 |
OPTIONAL NUT SELECTION:
DIMENSIONAL SPEC€™S. - DIN 934
MATERIAL SPEC€™S. - DIN 267 - PART 4
