Brand: FREER NAAMS

NAAMS Hexagon Nut F420813 M8 x 1.25

SKU: FN-F420813
MPN: F420813

Unit price per

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**

Looking for CAD models?
Request NAAMS CAD Models

Short Description

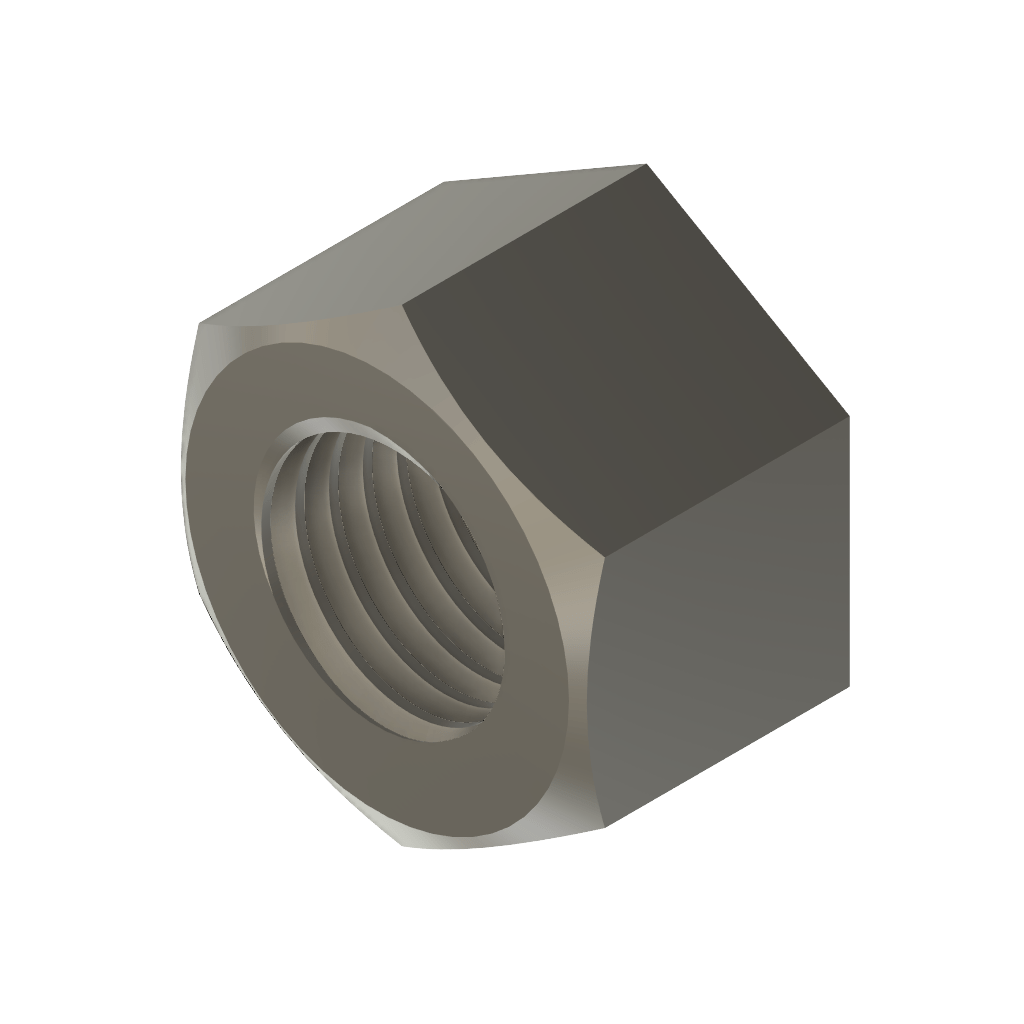

Enhance your fastening system with the high-quality NAAMS Hexagon Nut F420813 M8 x 1.25. This coarse thread nut, made of durable ASTM A563M Class 12 material, will ensure the secure and efficient assembly of your components. Trust in this reliable and powerful hexagon nut to meet all your fastener needs!

Full Description

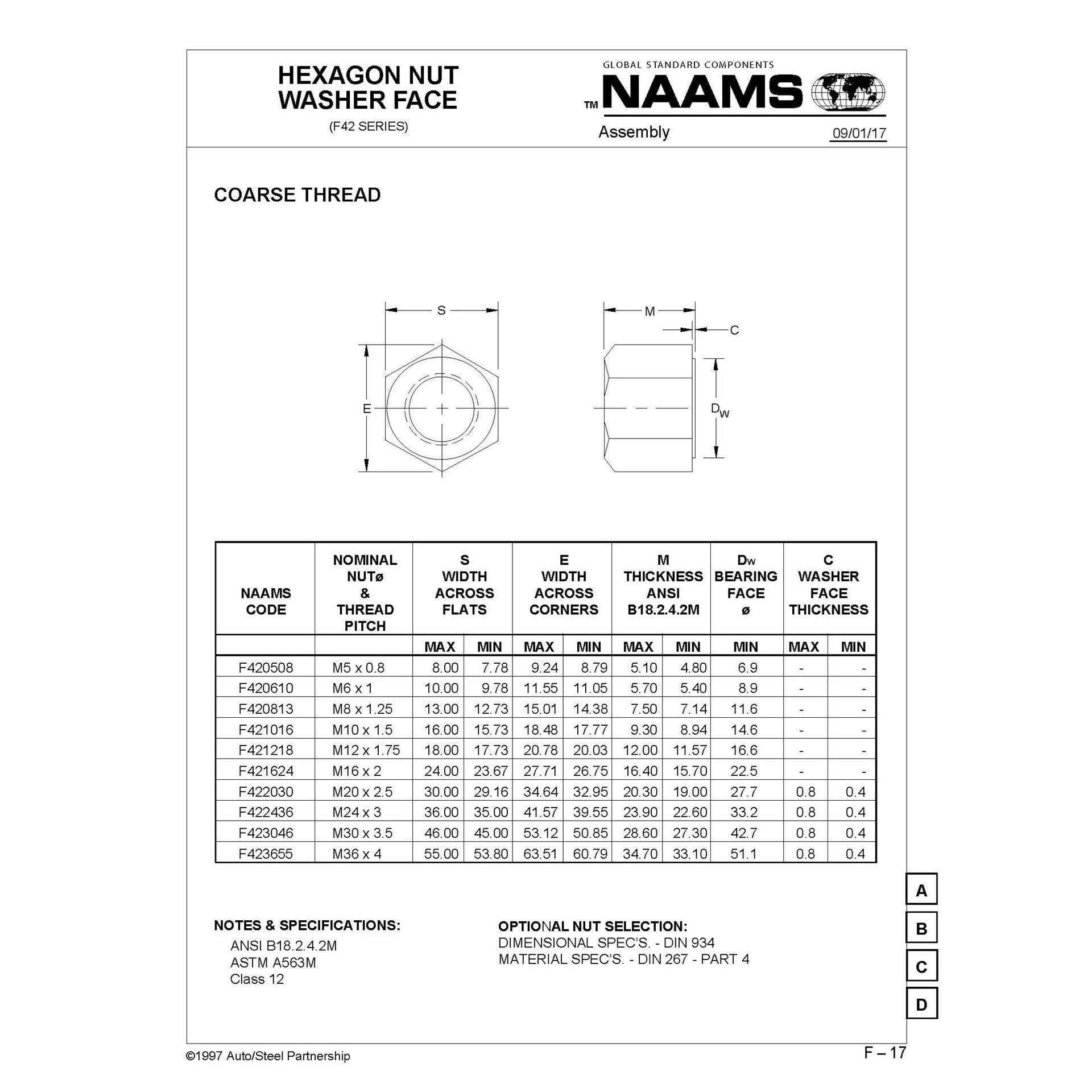

FREER NAAMS HEXAGON NUT F420813 M8 x 1.25

ASTM A563M Class 12

ANSI B18.2.4.2M

Coarse Threads

Nom. nut & thread pitch	S width across flats		E width across corners		M thickness ANSI B18.2.4.2M		Dw bearing face
Nom. nut & thread pitch	Max	Min	Max	Min	Max	Min	Min
M8 x 1.25	13	12.73	15.01	14.38	7.5	7.14	11.6

OPTIONAL NUT SELECTION:
DIMENSIONAL SPEC€™S. - DIN 934
MATERIAL SPEC€™S. - DIN 267 - PART 4
