Brand: FREER NAAMS
NAAMS Hexagon Nut F420508 M5 x 0.8
SKU: FN-F420508
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Experience the power of the FREER NAAMS HEXAGON NUT F420508 fastener component! Made of high quality ASTM A563M Class 12 material and featuring coarse threads, this M5 x 0.8 nut is a must-have for your projects. Elevate your work to a new level with this essential hexagon nut.
Full Description

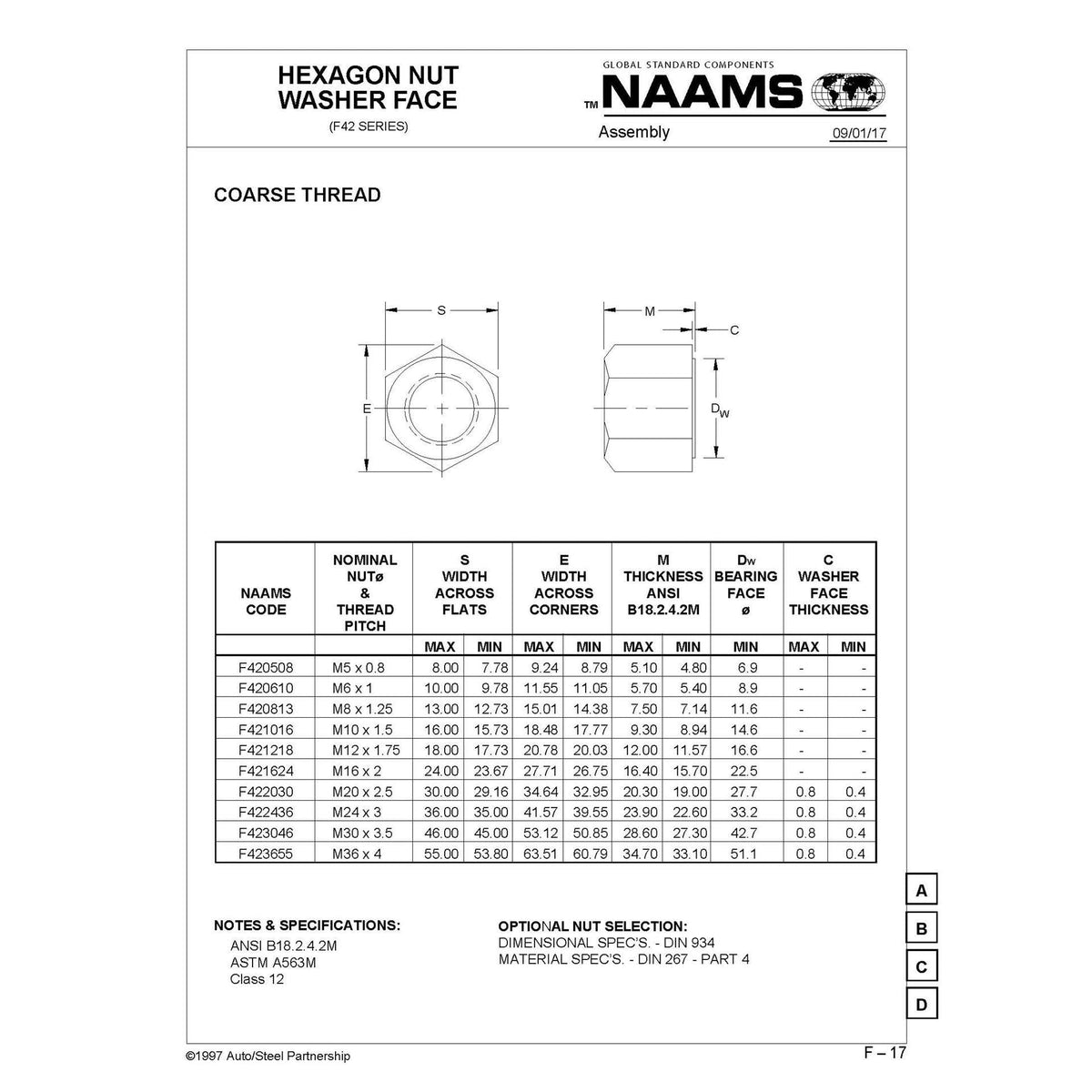

FREER NAAMS HEXAGON NUT F420508
ASTM A563M Class 12
ANSI B18.2.4.2M
Coarse Threads
Thread: M5 x 0.8
| Nom. nut & thread pitch |
S width across flats | E width across corners | M thickness ANSI B18.2.4.2M | Dw bearing face | |||
| Max | Min | Max | Min | Max | Min | Min | |
| M5 x 0.8 | 8 | 7.78 | 9.24 | 8.79 | 5.1 | 4.8 | 6.9 |
OPTIONAL NUT SELECTION:
DIMENSIONAL SPEC€™S. - DIN 934
MATERIAL SPEC€™S. - DIN 267 - PART 4
