Brand: FREER NAAMS
NAAMS Hexagon Nut F392436 M24 x 2
SKU: FN-F392436
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Create a strong connection with the NAAMS Hexagon Nut F392436 fastener component. This incredible product has a M24 x 2 thread and is made from high-quality material, ASTM A563M Class 12. Embrace the value of this piece and see the difference it can make in your projects!
Full Description

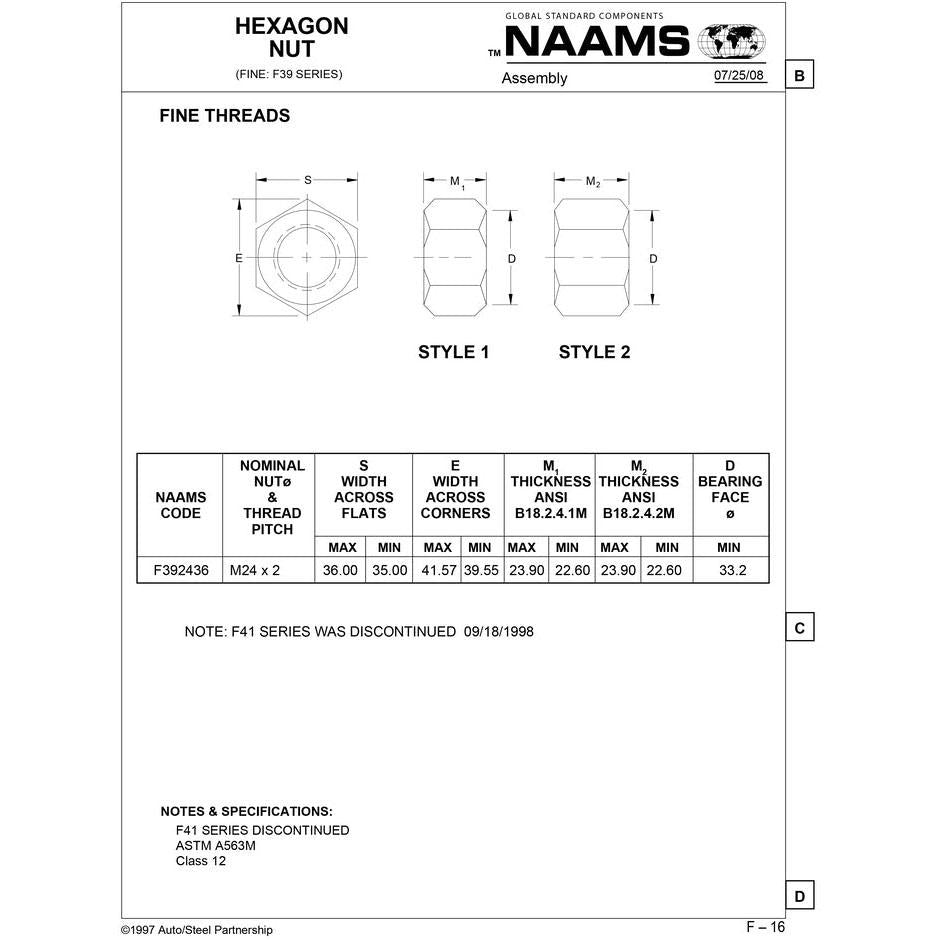

FREER NAAMS Hexagon Nut F392436
Material: ASTM A563M Class 12
Thread: M24 x 2
| Nominal nut & thread pitch |
S width across flats | E width across corners | M1 thick. ANSI B18.2.4.1M | M2 thick. ANSI B18.2.4.2M | D bearing face | ||||
| Max | Min | Max | Min | Max | Min | Max | Min | Min | |
| M24 x 2 | 36.00 | 35.00 | 41.57 | 39.55 | 23.90 | 22.60 | 23.90 | 22..60 | 33.2 |
