Brand: FREER NAAMS

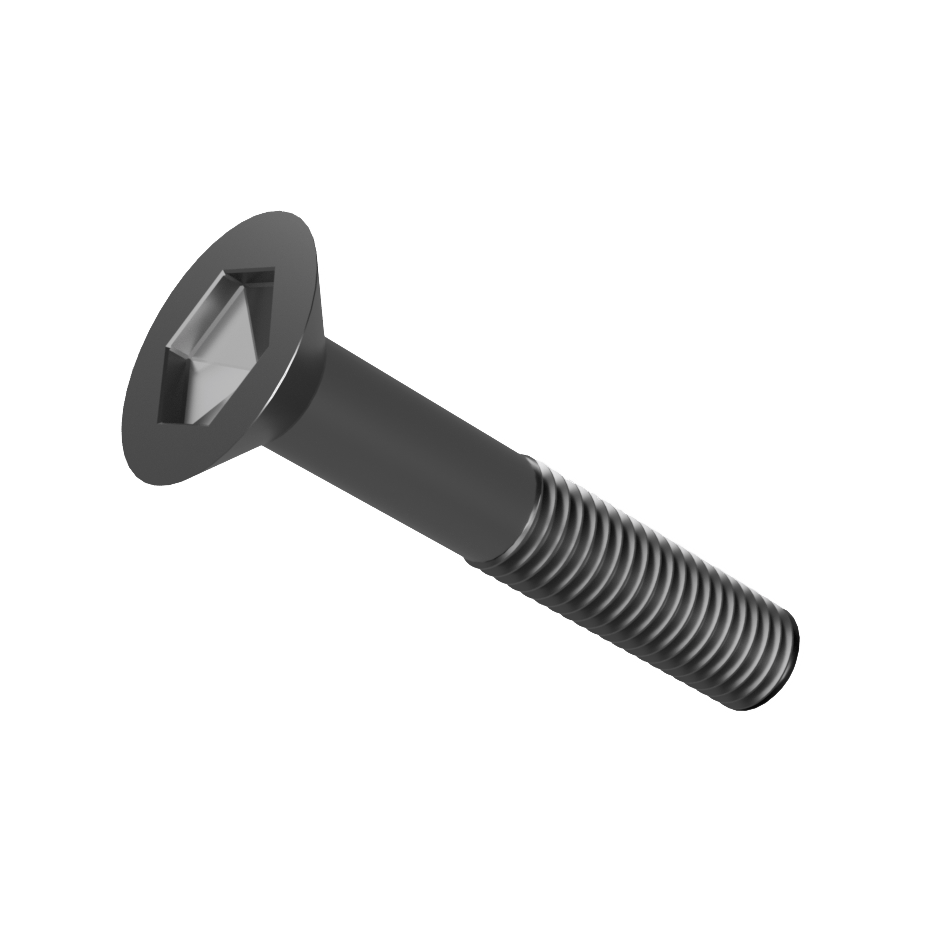

NAAMS Socket Flat Head Cap Screw F032014B M20 x 2.5 x 40

SKU: FN-F032014B
MPN: F032014B

Unit price per

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**

Looking for CAD models?
Request NAAMS CAD Models

Short Description

Freer NAAMS fastener components.

Socket flat head cap screw F03 series.

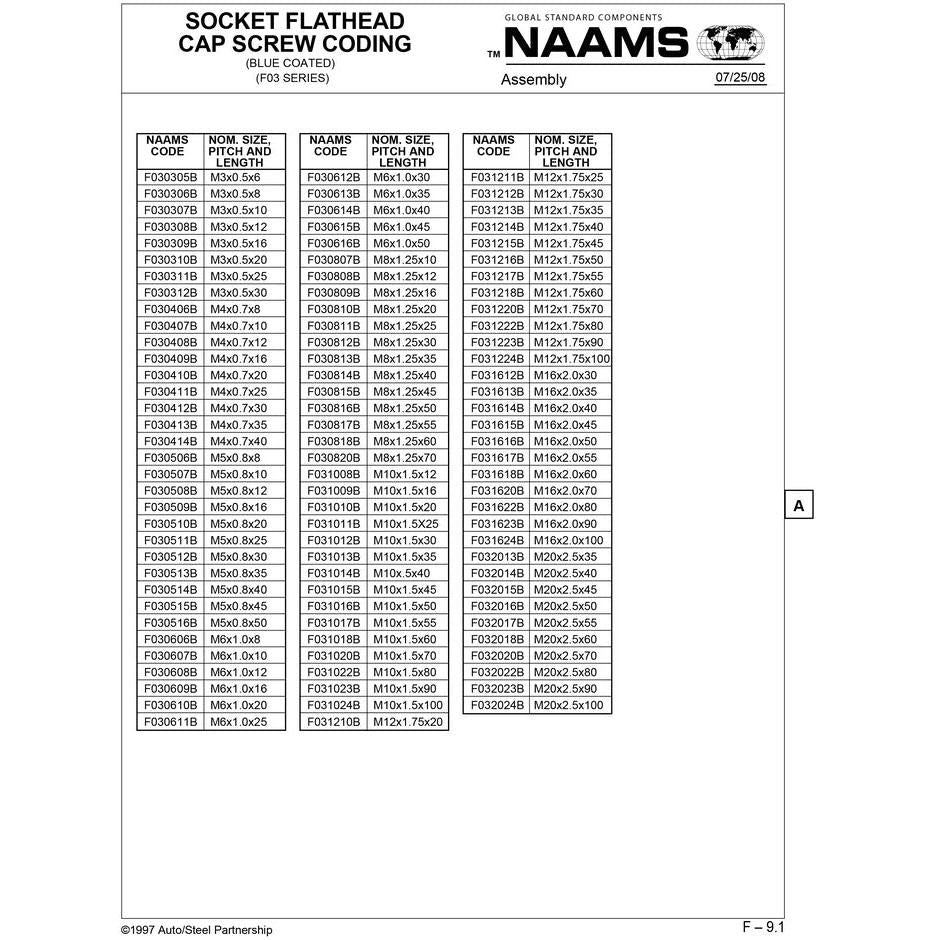

Part number: F032014B.

Manufactured from class 12.9 alloy steel with a blue coating.

Full Description

FREER NAAMS SOCKET FLAT HEAD CAP SCREW F032014B

Material: Class 12.9 Steel

Blue Coated

Size, Pitch, and Length: M20x2.5x40

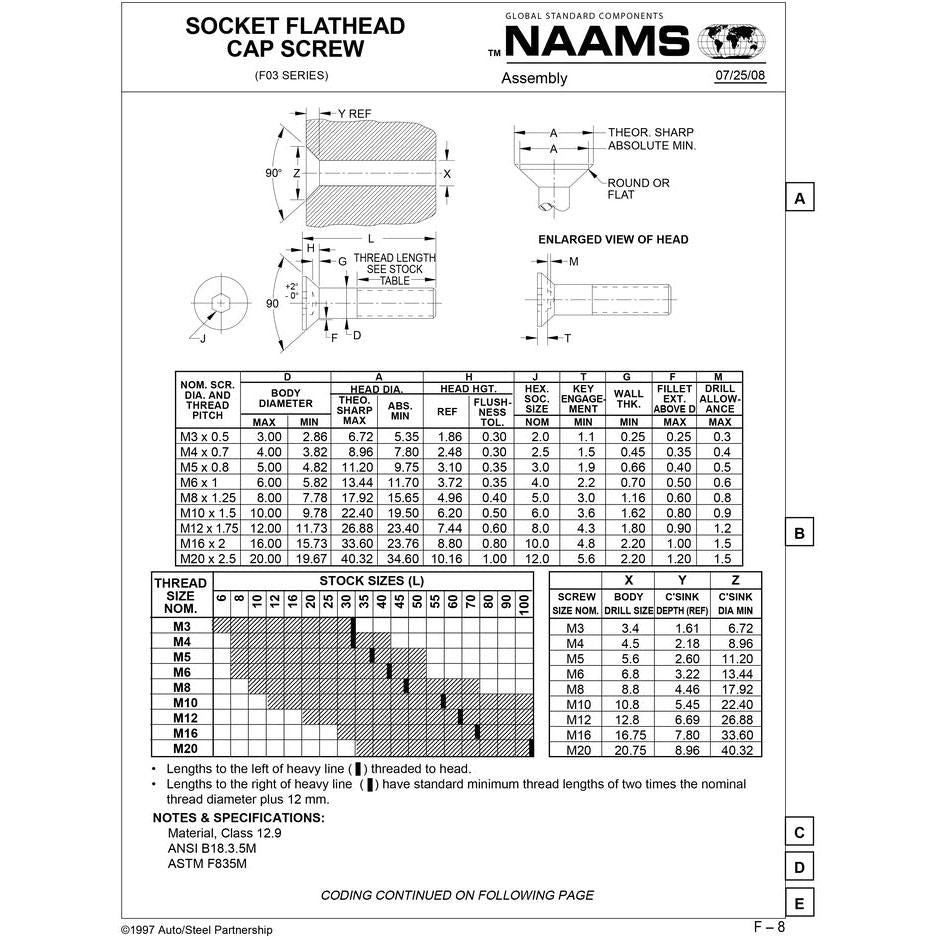

Dia. and Thread Pitch	D		A		H		J	T	G	F	M
	Body dia.		Head dia.		Head hgt.		Hex. size	Key engage.	Wall thk.	Fillet ext.	Drill allow.
	Max	Min	Theo. Sharp max	Abs. min	Ref	Flush tol.	Nom	Min	Min	Max	Max
M20 x 2.5	20	19.67	40.32	34.6	10.16	1	12	5.6	2.2	1.2	1.5
