Brand: Tungaloy

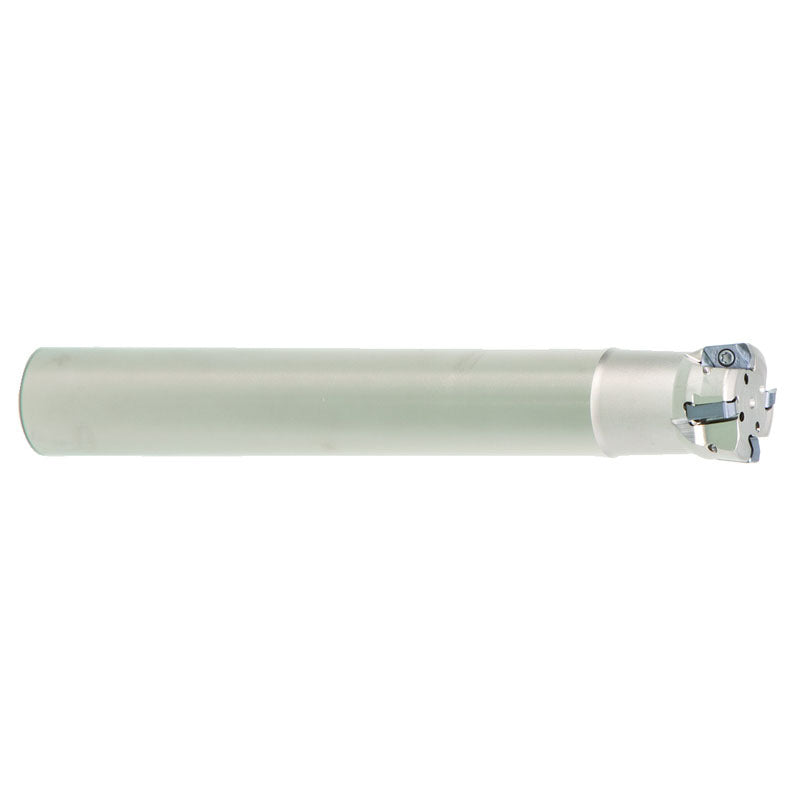

Tungaloy TG256865490 EXN03R062U0062-02
SKU: FTS-TG256865490
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6865490 EXN03R062U0062-02Full Description
| Cutting Diameter (DC/DCX) | 5/8" | Master Insert Identification (MIID) | LNMU0303ZER-MJ |
| Cutting Diameter (DC) | 5/8" | Weight of Item (WT) | 0.31 lb. |
| Cutting Diameter Maximum (DCX) | 5/8" | Head Length (LH) | 1-1/4" |
| Cutting Item Count (CICT) | 2 | Functional Length (LF) | 4" |
| Depth of Cut Maximum (APMX) | 0.039" | Tool Type | Fast Feed Endmill |
| Overall Length (OAL) | 4" | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Face Milling | High Feed Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 5/8" | Shank Length (LS) | 2-3/4" |
Family Description
Super high feed milling endmills with double sided inserts with 4 edges (Center-through coolant)
