Brand: INDUSTRIAL MAGNETICS

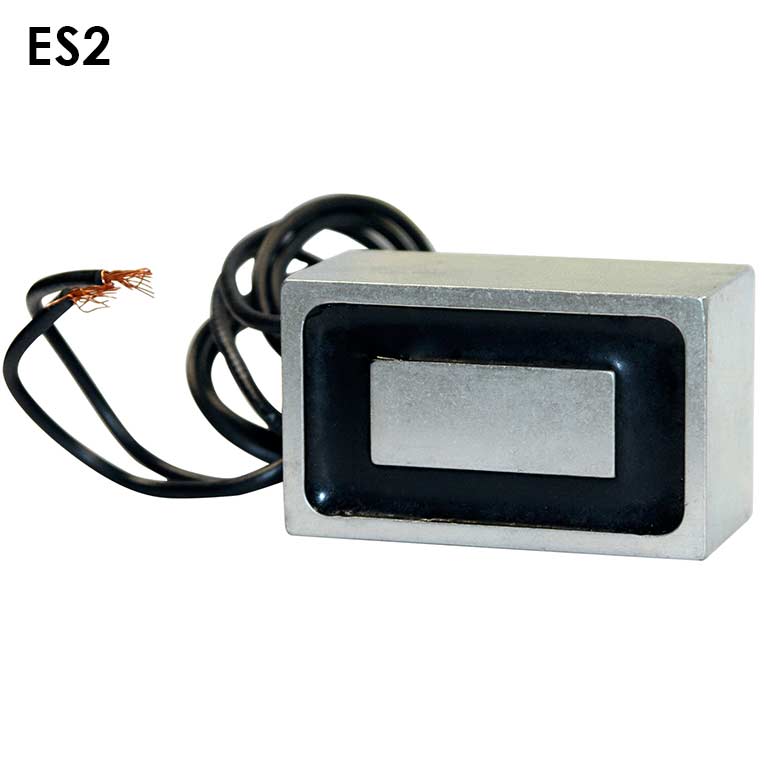

Industrial Magnetics MAG-MATE® Electro Magnet 24VDC RS With Cord ES2-482
SKU: IM-ES2-482
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industrial Magnetics MAG-MATE® Electro Magnet 24VDC RS With Cord ES2-482. Rectangular Electromagnet. IMI Rectangular Electromagnets offer on/off capability and can be controlled in automated sheet metal handling applications.*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Industrial Magnetics MAG-MATE® Electro Magnet 24VDC RS With Cord ES2-482
Our Rectangular Electromagnets offer On/Off capability and can be controlled in an automated sheet metal handling system. Through the application of controlled DC electrical current, electromagnets have the ability to hold and release ferrous material on command. Rectangular Electromagnets are available in four standard sizes. These magnets provide positive holding power and high responsiveness in numerous manual or automatic applications. Controlled by a remote IMI power supply, rectangular electromagnets are available in 24VDC, *110VDC and 120VAC models.
Literature Download: Rectangular Electromagnet| RECTANGULAR Electromagnets - 110 VDC Available Upon Request | |||||||||
| Lift (lbs) | Lift (kg) | 24 VDC | 120 VAC | Width (in) | Length (in) | Height (in) | Tap Size | Watts | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 24.95 | ES2-111 | ‚¬€ | 1-1/2 | 1-1/2 | 1-1/4 | 10-32 | 8 | 0.31 |
| 80 | 45.36 | ES2-121 | ESA-121 | 1-1/2 | 2-1/2 | 1-1/4 | 10-32 | 10 | 1 |
| 150 | 90.72 | ES2-221 | ESA-221 | 2-1/2 | 2-1/2 | 1-1/2 | 1/4-20 | 14 | 2 |
| 300 | 181.44 | ES2-241 | ESA-241 | 2-1/2 | 4-1/2 | 1-7/8 | 1/4-20 | 29 | 5 |
| 850 | 453.60 | ES2-482 | ‚¬€ | 4 | 8 | 2-1/2 | 3/8-16 | 58 | 18 |
