Brand: INDUSTRIAL MAGNETICS

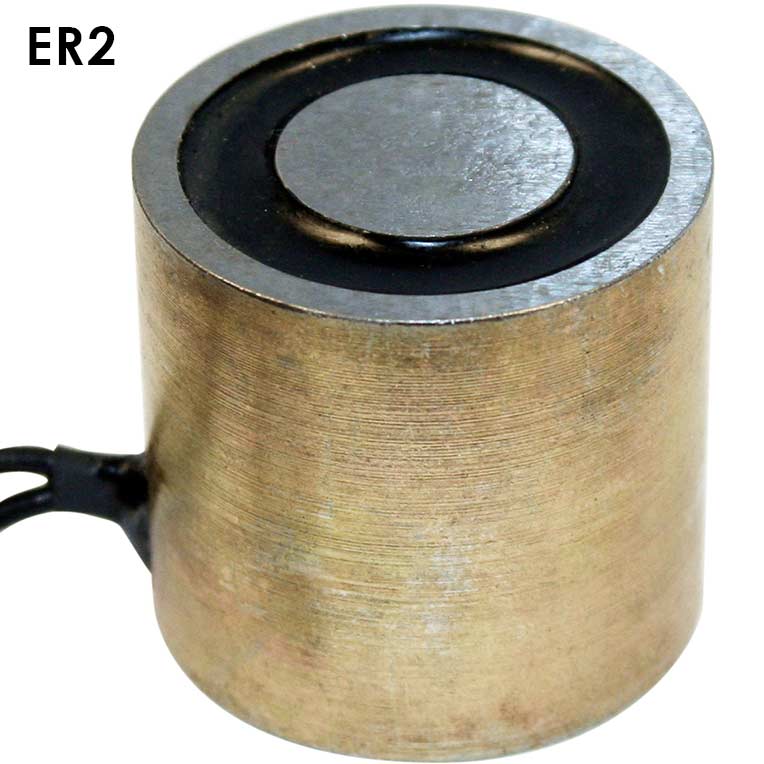

Industrial Magnetics MAG-MATE® Electro Magnet 24VDC RS With Leads ER2-303
SKU: IM-ER2-303
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industrial Magnetics MAG-MATE® Electro Magnet 24VDC RS With Leads ER2-303. Round Electromagnet. IMI Round Electromagnets offer on/off capability and can be controlled in automated sheet metal handling applications.*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Industrial Magnetics MAG-MATE® Electro Magnet 24VDC RS With Leads ER2-303
Our Round Electromagnets offer On/Off capability and can be controlled in an automated sheet metal handling system. Through the application of controlled DC electrical current, electromagnets have the ability to hold and release ferrous material on command. The Round Electromagnets are available in a variety of sizes. They deliver concentrated holding power and high responsiveness in manual or automatic applications. Operating under the control of IMI power supply units, round electromagnets in 24VDC, *110VDC or 120VAC configurations deliver optimum holding power.
Literature Download: Round Electromagnet| Round Electromagnets - 110 VDC Available Upon Request | ||||||||
| Lift (lbs) | Lift (kg) | 24 VDC | 120 VAC | Diameter (in) | Width (in) | Tap Size | Watts | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| 5 | 2.37 | ER2-071 | ‚¬€ | 3/4 | 1-1/4 | 10-32 | 1.4 | 0.2 |
| 7 | 3.18 | ER2-101 | ‚¬€ | 1 | 3/4 | 10-32 | 1.4 | 0.2 |
| 12 | 5.45 | ER2-102 | ‚¬€ | 1 | 1-1/4 | 10-32 | 3.6 | 0.3 |
| 25 | 9.98 | ER2-103 | ‚¬€ | 1-1/4 | 1-1/4 | 1/4-20 | 4.4 | 0.4 |
| 40 | 18.15 | ER2-104 | ‚¬€ | 1-1/2 | 1-1/2 | 1/4-20 | 4.6 | 0.7 |
| 90 | 34.05 | ER2-201 | ERA-201 | 2 | 1-5/8 | 1/4-20 | 5.6 | 1.2 |
| 100 | 40.83 | ER2-202 | ERA-202 | 2 | 2-1/2 | 1/4-20 | 13.0 | 2.0 |
| 200 | 83.92 | ER2-303 | ERA-303 | 3 | 3 | 5/16-18 | 25.0 | 5.0 |
| 350 | 147.42 | ER2-403 | ‚¬€ | 4 | 3 | 3/8-16 | 36.0 | 9.0 |
