Brand: Iscar

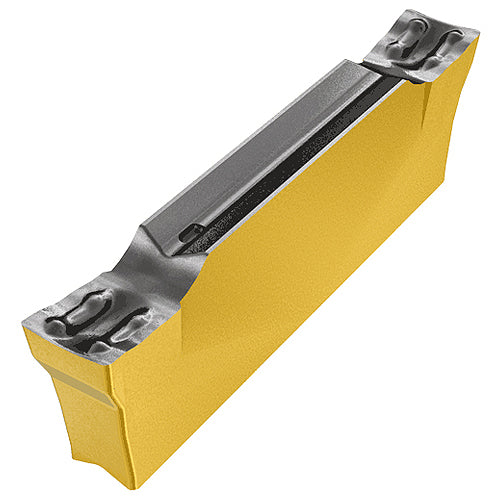

Iscar EH646011379 DGN 2002Z IC808
SKU: FTS-EH646011379
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH646011379 DGN 2002Z IC808Full Description
| Cutting Width (CW) | 0.079" | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0079" | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 0.823" | Max. Grooving Feed (fg(max)) | 0.0047 " /rev |
| Cutting Depth Maximum (CDX) | 0.709" | Min. Grooving Feed (fg(min)) | 0.0012 " /rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
| Shape | 90° Rectangular |
Family Description
A chipformer for use at low feeds on Cr-Ni alloys and low carbon steel, especially in the bearing industry, and on similar, problematic materials. The narrow chipformer design ensures short deformed chips and high surface finish.
