Brand: Iscar

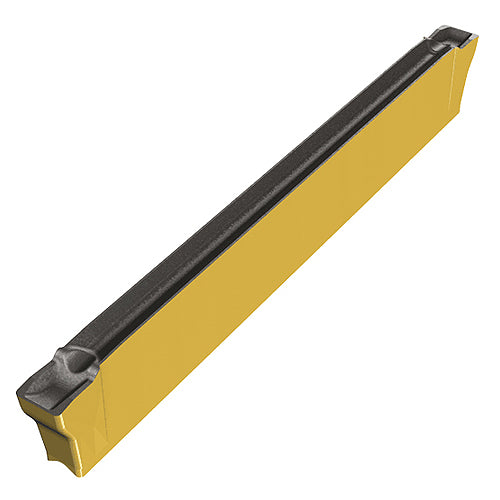

Iscar EH646004644 DGN 2002C-XL IC830
SKU: FTS-EH646004644
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH646004644 DGN 2002C-XL IC830Full Description
| Cutting Width (CW) | 0.081" | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0079" | Application | | Ext. Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012" | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 1.26" | Max. Grooving Feed (fg(max)) | 0.0063 " /rev |
| Cutting Depth Maximum (CDX) | 1.181" | Min. Grooving Feed (fg(min)) | 0.002 " /rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
| Shape | 90° Rectangular |
Family Description
First choice for the parting of bars up to 2.56" diameters, hard materials and tough applications. A positive rake with a single cavity and a negative land. Provides extra cutting-edge strength. Used for medium-to-high feeds.
