Brand: Iscar

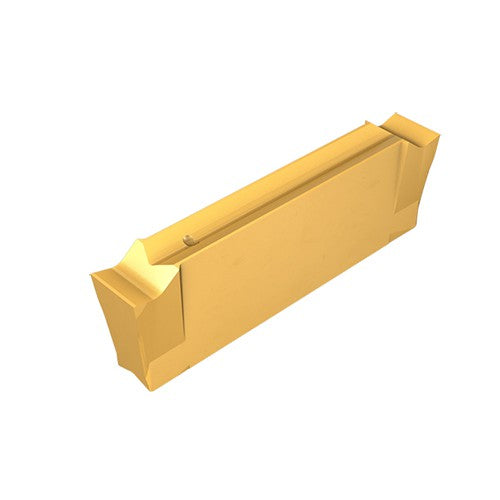

Iscar EH646003414 DGN 3000P IC508
SKU: FTS-EH646003414
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH646003414 DGN 3000P IC508Full Description
| Cutting Width (CW) | 0.118" | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.002" | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Overall Length (OAL) | 0.787" | Max. Grooving Feed (fg(max)) | 0.0039 " /rev |
| Cutting Depth Maximum (CDX) | 0.709" | Min. Grooving Feed (fg(min)) | 0.0008 " /rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiCN+TiN | Measurement Type | Inch |
| Grade | IC508 | Body Material | Carbide |
| Shape | 90° Rectangular |
Family Description
Double-sided insert with a very positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used on soft materials, thin parts and general parting at low feed.
