Brand: Iscar

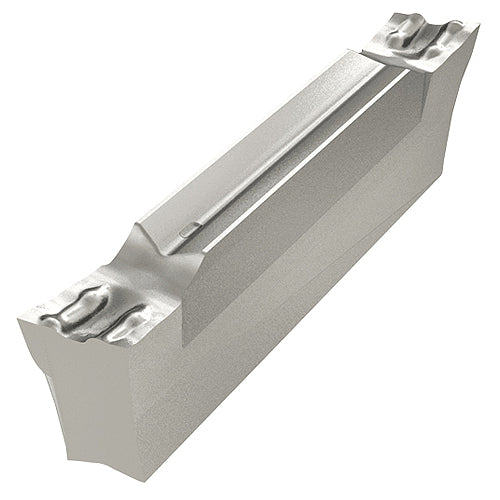

Iscar EH646003284 DGR 2002Z-15D IC908
SKU: FTS-EH646003284
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH646003284 DGR 2002Z-15D IC908Full Description
| Corner Radius (RE) | 0.0079" | Application | | Parting | |
| Overall Length (OAL) | 0.823" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.709" | Max. Grooving Feed (fg(max)) | 0.0039 " /rev |
| Cutting Edge Material | Carbide | Min. Grooving Feed (fg(min)) | 0.0012 " /rev |
| Coating | TiAlN | Tool Type | Parting & Grooving Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
Family Description
A chipformer for use at low feeds. Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials. The tight chipformer ensures short, deformed chips.
