Brand: Iscar

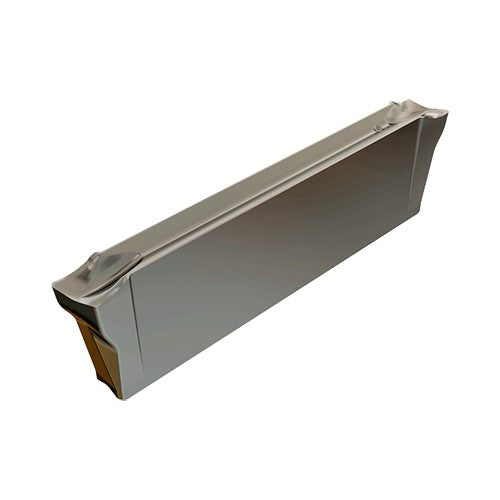

Iscar EH646003232 DGR 4803J-8D IC328
SKU: FTS-EH646003232
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH646003232 DGR 4803J-8D IC328Full Description
| Corner Radius (RE) | 0.0118" | Application | | Parting | |
| Overall Length (OAL) | 0.78" | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Edge Material | Carbide | Max. Grooving Feed (fg(max)) | 0.0059 " /rev |
| Coating | TiCN | Min. Grooving Feed (fg(min)) | 0.0016 " /rev |
| Grade | IC328 | Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
Family Description
First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts at low-to-medium feeds. Cutting edge with a positive rake. JS-type has a sharp corner.
