Brand: Iscar

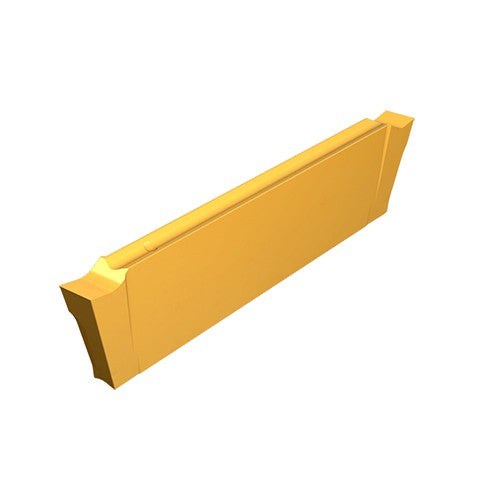

Iscar EH646002943 DGR 2000P-6D IC508
SKU: FTS-EH646002943
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH646002943 DGR 2000P-6D IC508Full Description
| Corner Radius (RE) | 0.002" | Application | | Parting | |
| Overall Length (OAL) | 0.811" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Cutting Depth Maximum (CDX) | 0.709" | Max. Grooving Feed (fg(max)) | 0.0027 " /rev |
| Cutting Edge Material | Carbide | Min. Grooving Feed (fg(min)) | 0.0008 " /rev |
| Coating | TiCN+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC508 | Measurement Type | Inch |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
Family Description
Very positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used mainly on soft materials and thin parts at low feeds.
