Brand: Iscar

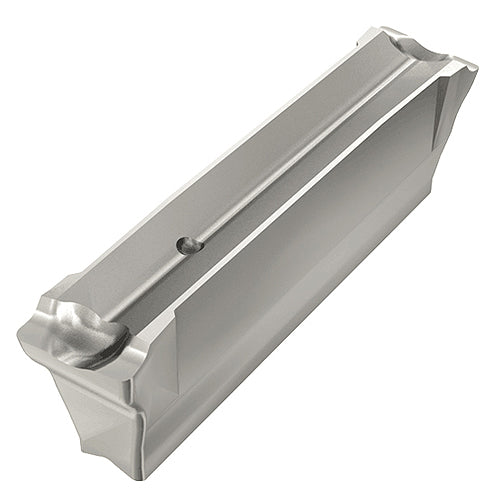

Iscar EH646002543 DGN 3003UA IC20
SKU: FTS-EH646002543
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH646002543 DGN 3003UA IC20Full Description
| Corner Radius (RE) | 0.0098" | Cutting Direction (HAND) | Neutral |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008" | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Overall Length (OAL) | 0.807" | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Cutting Depth Maximum (CDX) | 0.709" | Max. Grooving Feed (fg(max)) | 0.0059 " /rev |
| Cutting Edge Material | Carbide | Min. Grooving Feed (fg(min)) | 0.0016 " /rev |
| Coating | Uncoated | Tool Type | Parting & Grooving Inserts |
| Grade | IC20 | Measurement Type | Inch |
| Shape | 90° Rectangular | Body Material | Carbide |
Family Description
A chipformer for use at low feeds. Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials. The narrow chipformer design ensures short deformed chips.
