Brand: Iscar

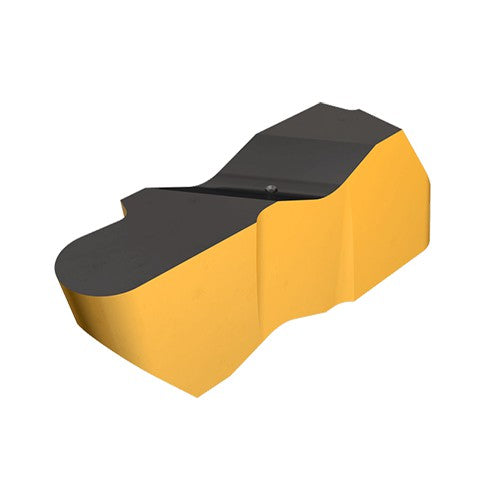

Iscar EH6412073 INR4125L IC807
SKU: FTS-EH6412073
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH6412073 INR4125L IC807Full Description
| Cutting Width (CW) | 1/4" | Grade | IC807 |
| Corner Radius (RE) | 0.1252" | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 1/4" | Application | | Ext. Grooving | Ext. Profiling | Int. Grooving | Int. Profiling | |
| Insert Thickness (S) | 0.453" | Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Insert Length (INSL) | 1.12" | Measurement Type | Inch |
| Insert Rake Angle (GAN) | 0 Degrees | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0087 inch/rev | Body Material | Carbide |
| Coating | TiAlN+TiN |
Family Description
Precision double-ended grooving flat top round inserts.
DMIN according to related boring bar
