Brand: Iscar

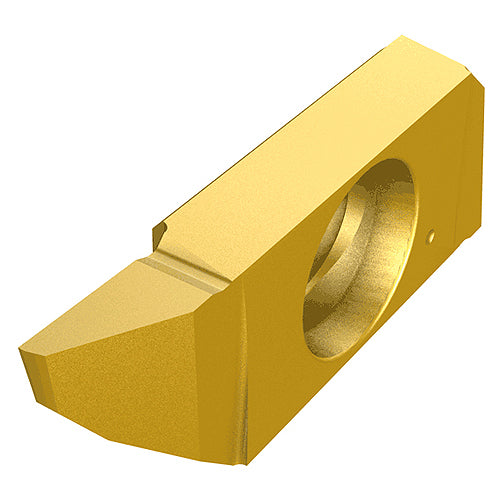

Iscar EH6410064 SCIR 22-ER00-07K10 IC1008
SKU: FTS-EH6410064
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH6410064 SCIR 22-ER00-07K10 IC1008Full Description
| Cutting Width (CW) | 0.028" | Coating | TiAlN+TiN |
| Corner Radius (RE) | 0" | Grade | IC1008 |
| Profile Distance EY (PDY) | 0.008" | Shape | 90° Rectangular |
| Cutting Depth Maximum (CDX) | 0.197" | Cutting Edge Material | Carbide |
| Clearance Angle Major (AN) | 3 Degrees | Application | | Ext. Back Turning | |
| Insert Thickness (S) | 0.276" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Insert Length (INSL) | 0.866" | Measurement Type | Inch |
| Insert Rake Angle (GAN) | 10 Degrees | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0059 inch/rev | Body Material | Carbide |
Family Description
Back turning inserts with a flat top rake for short chipping materials, used on Swiss type automatics and small CNC lathes.
