Brand: Iscar

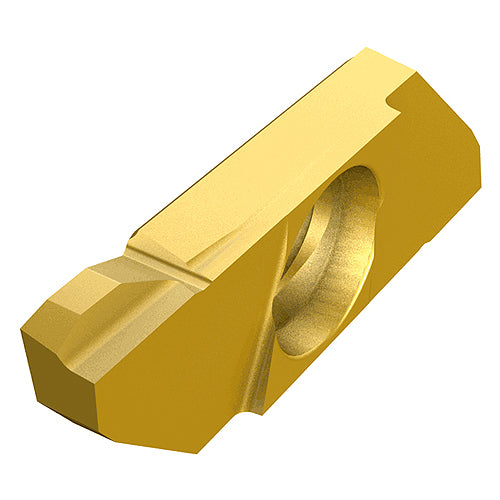

Iscar EH6405421 SCIR 22-AR10-25K8 IC1008
SKU: FTS-EH6405421
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH6405421 SCIR 22-AR10-25K8 IC1008Full Description
| Corner Radius (RE) | 0.0039" | Cutting Direction (HAND) | Right Hand |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008" | Application | | Ext. Turning | |
| Insert Thickness (S) | 0.276" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Overall Length (OAL) | 0.866" | Insert Rake Angle (GAN) | 8 Degrees |
| Insert Length (INSL) | 0.866" | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 0.15" | Min D.O.C. | 0.005" |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Depth of Cut Maximum (APMX) | 0.15" |
| Grade | IC1008 | Body Material | Carbide |
| Shape | 90° Rectangular |
Family Description
Turning inserts with a frontal relief angle used on Swiss type automatics and small CNC lathes.
