Brand: Iscar

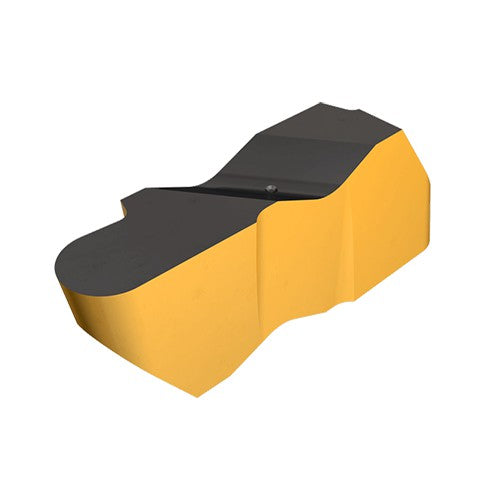

Iscar EH6405393 INR3031R IC808
SKU: FTS-EH6405393
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH6405393 INR3031R IC808Full Description
| Cutting Width (CW) | 0.062" | Grade | IC808 |
| Corner Radius (RE) | 0.0311" | Shape | 90° Rectangular |
| Cutting Depth Maximum (CDX) | 1/8" | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.344" | Application | | Ext. Grooving | Ext. Profiling | Int. Grooving | Int. Profiling | |
| Insert Length (INSL) | 0.89" | Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Insert Rake Angle (GAN) | 0 Degrees | Measurement Type | Inch |
| Feed | 0.0031 inch/rev | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
Family Description
Precision double-ended grooving flat top round inserts.
DMIN according to related boring bar
