Brand: Iscar

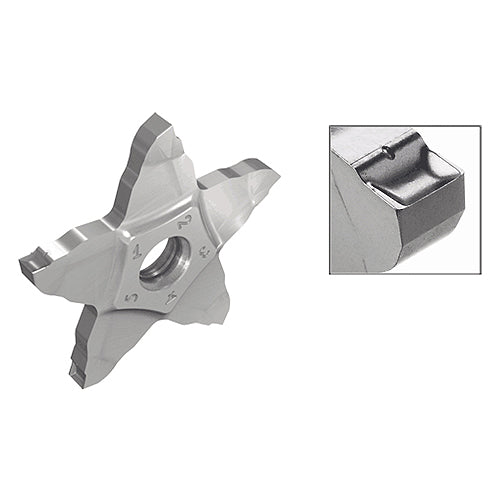

Iscar EH6094458 PENTA 34R150PB-6D IC908
SKU: FTS-EH6094458
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH6094458 PENTA 34R150PB-6D IC908Full Description
| Corner Radius (RE) | 0.0027" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.335" | Max. Grooving Feed (fg(max)) | 0.002 " /rev |
| Cutting Edge Material | Carbide | Min. Grooving Feed (fg(min)) | 0.0012 " /rev |
| Coating | TiAlN | Chip Breaker Type | PB |
| Grade | IC908 | Tool Type | Parting & Grooving Inserts |
| Shape | 108° Pentagonal | Work Piece Parting Diameter Maximum (CUTDIA) | 0.709" |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Application | | Parting | | Body Material | Carbide |
Family Description
Pentagonal inserts for parting bearing steel and other ductile materials.
For parting and grooving range, click on "More Info".
