Brand: Iscar

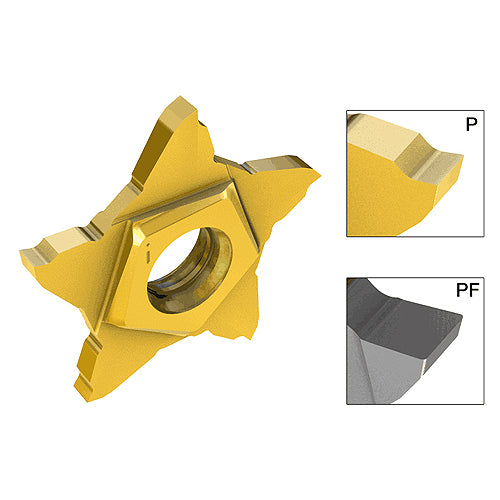

Iscar EH6093285 PENTA 24N100PF010 IC908
SKU: FTS-EH6093285
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH6093285 PENTA 24N100PF010 IC908Full Description
| Cutting Width (CW) | 0.039" | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Corner Radius (RE) | 0.0039" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008" | Max. Grooving Feed (fg(max)) | 0.0024 " /rev |
| Cutting Depth Maximum (CDX) | 0.157" | Min. Grooving Feed (fg(min)) | 0.0012 " /rev |
| Cutting Edge Material | Carbide | Insert Rake Angle (GAN) | 6 Degrees |
| Coating | TiAlN | Chip Breaker Type | PF |
| Grade | IC908 | Tool Type | Parting & Grooving Inserts |
| Shape | 108° Pentagonal | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
Family Description
Parting and precision grooving inserts for soft and small parts. High positive rake, P-type has more positive rake, smaller radii and no edge honing vs. the PF-type. Most economical system with 5 cutting edges.
For parting and grooving range, click on "More Info".
