Brand: Iscar

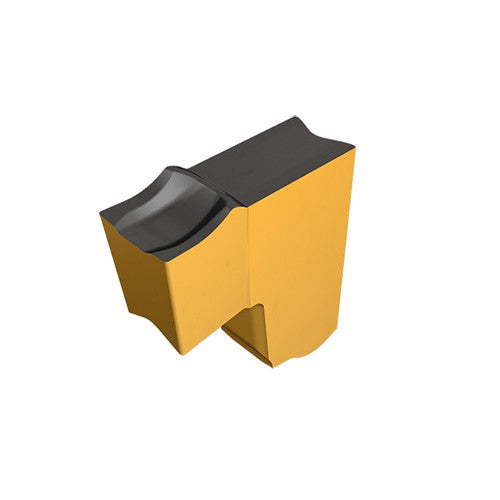

Iscar EH6080434 TAG N3LF IC5400
SKU: FTS-EH6080434
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH6080434 TAG N3LF IC5400Full Description
| Cutting Width (CW) | 0.12" | Application | | Ext. Grooving | Parting | Side Slotting | Slitting | |
| Corner Radius (RE) | 0.0079" | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012" | Max. Grooving Feed (fg(max)) | 0.0039 " /rev |
| Cutting Edge Material | Carbide | Min. Grooving Feed (fg(min)) | 0.0016 " /rev |
| Coating | TiCN+Al2O3+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC5400 | Measurement Type | Inch |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral |
Family Description
Parting grooving and slitting single-ended inserts, for austenitic stainless steel and ductile materials.
