Brand: Iscar

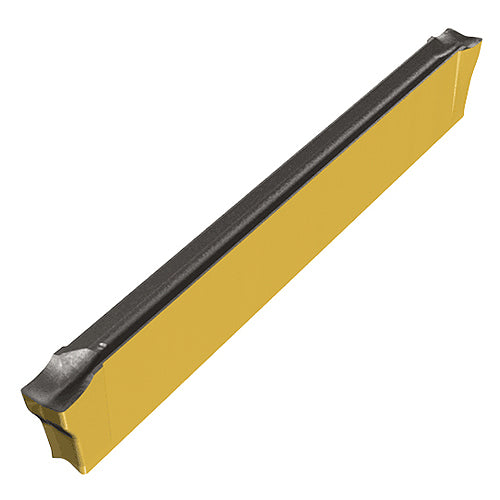

Iscar EH6080400 DGN 2002J-XL IC5400
SKU: FTS-EH6080400
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH6080400 DGN 2002J-XL IC5400Full Description
| Cutting Width (CW) | 0.081" | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0079" | Application | | Ext. Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012" | Applicable Material | | Steel | Stainless Steel | |
| Overall Length (OAL) | 1.26" | Max. Grooving Feed (fg(max)) | 0.0055 " /rev |
| Cutting Depth Maximum (CDX) | 1.181" | Min. Grooving Feed (fg(min)) | 0.0016 " /rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | IC5400 | Body Material | Carbide |
| Shape | 90° Rectangular |
Family Description
Parting & grooving, double-sided insert with a J-type chipformer. First choice for soft materials and stainless steel, parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake. Low-to-medium feeds.
