Brand: Iscar

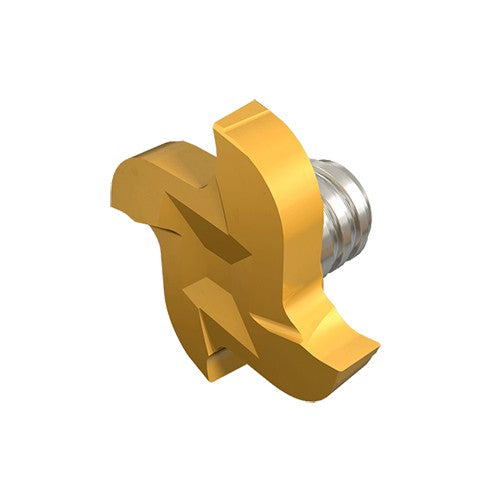

Iscar EH606403111 MM GRIT 22K-2.75-0.20 IC528
SKU: FTS-EH606403111
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH606403111 MM GRIT 22K-2.75-0.20 IC528Full Description
| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Grade | IC528 |
| Cutting Diameter (DC) | 0.854" | Coating | TiCN+TiN |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0079" | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Tool Type | Solid "T" slot cutters |
| Cutting Depth Maximum (CDX) | 0.177" | Body Material | Carbide |
| Cutting Width (CW) | 0.108" | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 0.427" |
Family Description
MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads. "P" suffix for sharp cutting edge. "K" suffix for T-land on cutting edge, to be used on steel and cast iron.
Recommended for O-rings and retaining rings K-for general steel & cast iron machining P- for soft and gummy materials Modification options on request Do not apply lubricant to the threaded connection. For clamping instructions, click on "More Info"
