Brand: Iscar

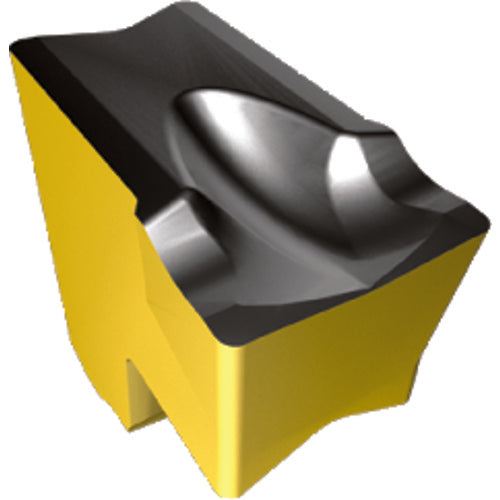

Iscar EH6011428 TAG N5J IC830
SKU: FTS-EH6011428
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH6011428 TAG N5J IC830Full Description
| Cutting Width (CW) | 0.199" | Application | | Ext. Grooving | Parting | Side Slotting | Slitting | |
| Corner Radius (RE) | 0.0098" | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0016" | Max. Grooving Feed (fg(max)) | 0.0079 " /rev |
| Cutting Edge Material | Carbide | Min. Grooving Feed (fg(min)) | 0.002 " /rev |
| Coating | AlTiN+TiN | Insert Rake Angle (GAN) | 5 Degrees |
| Grade | IC830 | Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
Family Description
First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners.
JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low-to-medium feeds.
