Brand: Iscar

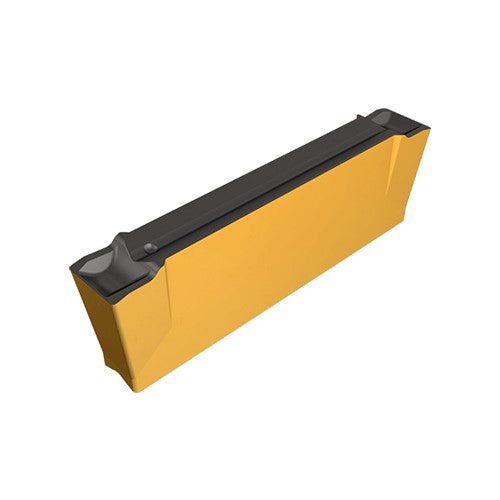

Iscar EH6004902 DGN 3102MF IC5400
SKU: FTS-EH6004902
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH6004902 DGN 3102MF IC5400Full Description
| Cutting Width (CW) | 0.118" | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0079" | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Overall Length (OAL) | 0.791" | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 0.709" | Max. Grooving Feed (fg(max)) | 0.0071 " /rev |
| Cutting Edge Material | Carbide | Min. Grooving Feed (fg(min)) | 0.0024 " /rev |
| Coating | TiCN+Al2O3+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC5400 | Measurement Type | Inch |
| Shape | 90° Rectangular | Body Material | Carbide |
Family Description
Double-sided inserts with a positive rake inclination, single cavity and negative land, for hard and soft materials, stainless steel, bearing steel and high temp alloys.
