Brand: Iscar

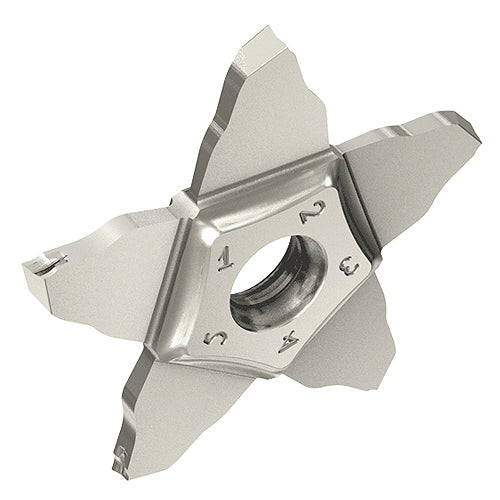

Iscar EH6004774 PENTA 34R200J06D IC908
SKU: FTS-EH6004774
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH6004774 PENTA 34R200J06D IC908Full Description
| Cutting Width (CW) | 0.079" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0039" | Max. Grooving Feed (fg(max)) | 0.0039 " /rev |
| Cutting Depth Maximum (CDX) | 0.335" | Min. Grooving Feed (fg(min)) | 0.0016 " /rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | J |
| Coating | TiAlN | Tool Type | Parting & Grooving Inserts |
| Grade | IC908 | Work Piece Parting Diameter Maximum (CUTDIA) | 0.709" |
| Shape | 108° Pentagonal | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Parting | |
Family Description
Insert with 5 cutting edges, for parting tubes, small and thin-walled parts. Most economical system available.
For parting and grooving range, click on "More Info"
