Brand: Iscar

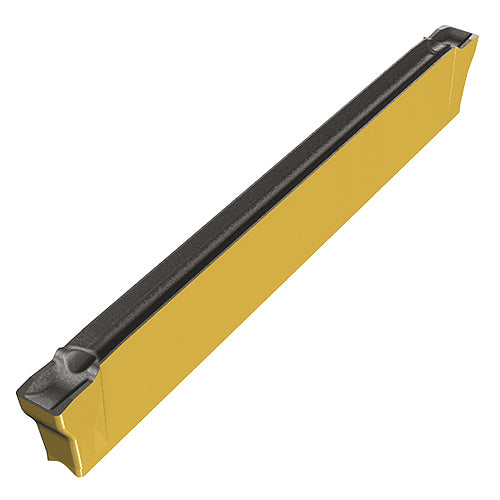

Iscar EH6004716 DGR 2002C-6D-XL IC830

SKU: FTS-EH6004716
MPN: 6004716

$35.54
Unit price per
Save $0.87

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

EH6004716 DGR 2002C-6D-XL IC830

Full Description

Corner Radius (RE)	0.008"	Application	\| Parting \|
Overall Length (OAL)	1.26"	Applicable Material	\| Steel \| Stainless Steel \| Super-Alloys / Titanium \|
Cutting Depth Maximum (CDX)	1.181"	Max. Grooving Feed (fg(max))	0.0047 " /rev
Cutting Edge Material	Carbide	Min. Grooving Feed (fg(min))	0.002 " /rev
Coating	AlTiN+TiN	Tool Type	Parting & Grooving Inserts
Grade	IC830	Measurement Type	Inch
Shape	90° Rectangular	Body Material	Carbide
Cutting Direction (HAND)	Right Hand

Family Description

First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity with nagative land and shoulders, provides extra cutting edge strength. Medium-to-high feeds.
