Brand: Iscar

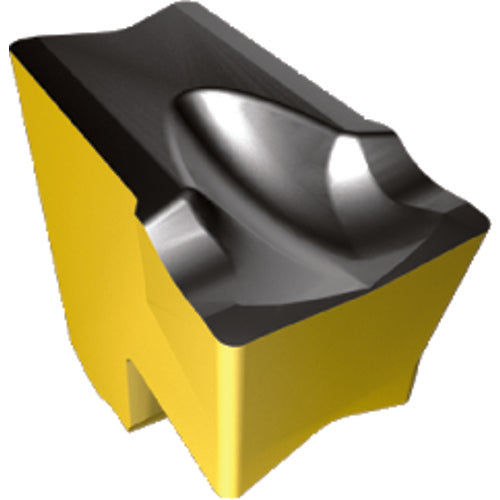

Iscar EH6004432 TAG N4J IC807

SKU: FTS-EH6004432
MPN: 6004432

$20.62
Unit price per
Save $0.50

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

EH6004432 TAG N4J IC807

Full Description

Cutting Width (CW)	0.157"	Application	\| Ext. Grooving \| Parting \| Side Slotting \| Slitting \|
Corner Radius (RE)	0.0094"	Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Corner Radius Tolerance (+/-) (RETOL)	0.0012"	Max. Grooving Feed (fg(max))	0.0071 " /rev
Cutting Edge Material	Carbide	Min. Grooving Feed (fg(min))	0.0016 " /rev
Coating	TiAlN+TiN	Insert Rake Angle (GAN)	5 Degrees
Grade	IC807	Tool Type	Parting & Grooving Inserts
Shape	90° Rectangular	Measurement Type	Inch
Cutting Direction (HAND)	Neutral	Body Material	Carbide

Family Description

First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners.

JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low-to-medium feeds.
