Brand: Iscar

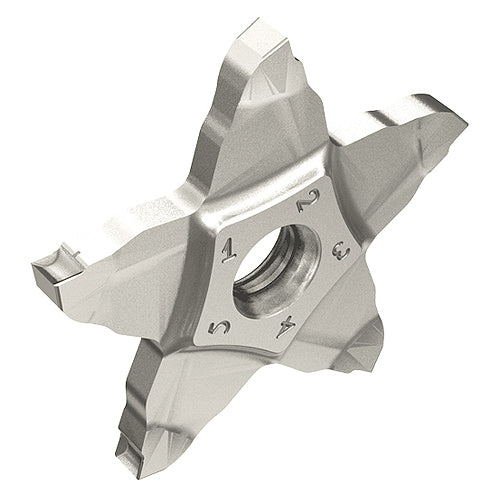

Iscar EH6004425 PENTA 34N150PB015 IC908
SKU: FTS-EH6004425
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH6004425 PENTA 34N150PB015 IC908Full Description
| Cutting Width (CW) | 0.059" | Application | | Ext. Grooving | Parting | |
| Corner Radius (RE) | 0.0059" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012" | Max. Grooving Feed (fg(max)) | 0.0024 " /rev |
| Cutting Depth Maximum (CDX) | 0.335" | Min. Grooving Feed (fg(min)) | 0.0012 " /rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | PB |
| Coating | TiAlN | Tool Type | Parting & Grooving Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 108° Pentagonal | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral |
Family Description
PENTACUT, parting and grooving, pentagonal inserts. Used for parting bearing steel and other ductile materials.
Dmax as a function of parting depth (T) For parting and grooving range, click on "More Info".
