Brand: Iscar

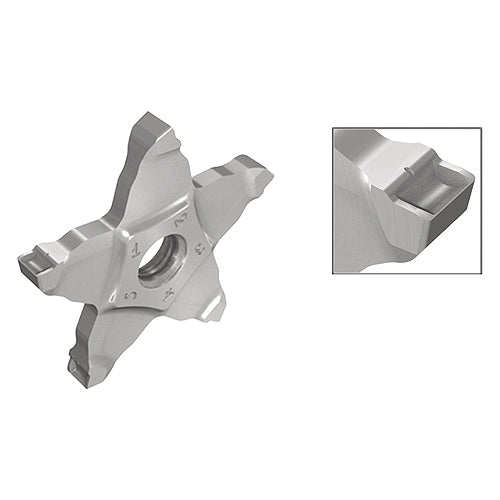

Iscar EH6003606 PENTA 34N247C020 IC908
SKU: FTS-EH6003606
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH6003606 PENTA 34N247C020 IC908Full Description
| Cutting Width (CW) | 0.097" | Application | | Ext. Grooving | Parting | |
| Corner Radius (RE) | 0.0079" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012" | Max. Grooving Feed (fg(max)) | 0.0071 " /rev |
| Cutting Depth Maximum (CDX) | 0.315" | Min. Grooving Feed (fg(min)) | 0.002 " /rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | C |
| Coating | TiAlN | Tool Type | Parting & Grooving Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 108° Pentagonal | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral |
Family Description
Used for parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds.
For parting and grooving range, click on "More Info"
