Brand: Iscar

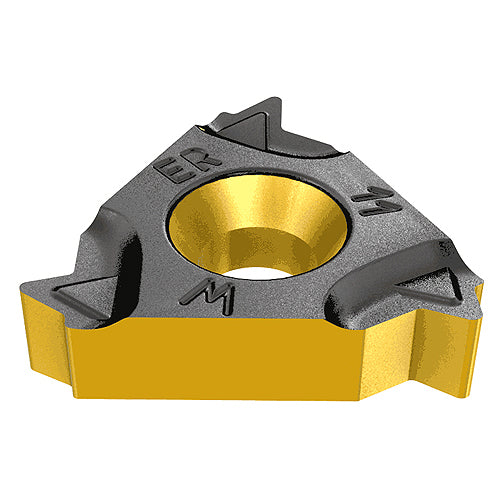

Iscar EH5993278 16ER 19 W IC908
SKU: FTS-EH5993278
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH5993278 16ER 19 W IC908Full Description
| Thread Standard | THFT | | Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Threads per Inch (TPI) | 19 Threads/" | Shape | 60° Triangle |
| Corner Radius (RE) | 0.0067" | Cutting Item Count (CICT) | 1 |
| Grade | IC908 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | External | Thread Form Type (THFT) | WH55 |
| Application | | External Thread Milling | External Threading | Treading Inserts | |
Family Description
External Whitworth (BSW, BSF, BSP), full profile laydown threading inserts. ER/L - Ground periphery and rake, ERB - With a chipformer and peripherally ground, ERM - With a chipformer. Application: fittings and pipe couplings.
For Insert Identification System, click on "More Info" For threading between walls use GRIP-type insert TIP-BSW. Tolerance: Medium Class
