Brand: Iscar

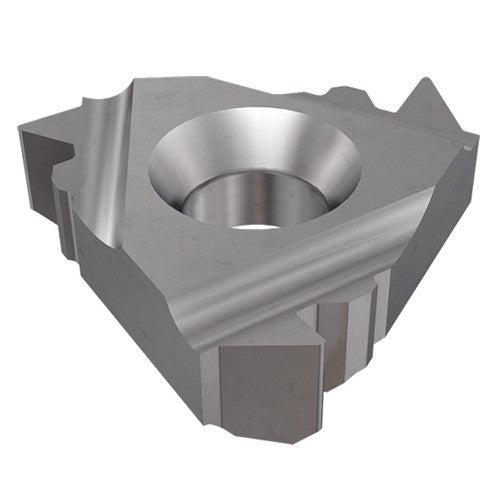

Iscar EH5902084 16IR 12 ABUT IC908
SKU: FTS-EH5902084
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH5902084 16IR 12 ABUT IC908Full Description
| Thread Standard | THFT | | Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
| Threads per Inch (TPI) | 12 Threads/" | Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Corner Radius (RE) | 0.0047" | Shape | 60° Triangle |
| Grade | IC908 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | Internal | Thread Form Type (THFT) | ABUT |
Family Description
" Internal American Buttress (ANSI B1.9-1973 Class 2) laydown threading inserts, for high force transmission in one direction.
" For Insert Identification System, click on "More Info" ANSI B1.9-1973 Class 2
