Brand: Iscar

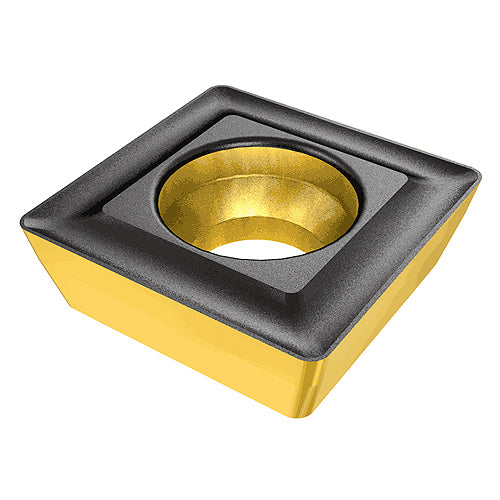

Iscar EH565510342 SOGX 060304-W IC808
SKU: FTS-EH565510342
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH565510342 SOGX 060304-W IC808Full Description
| Insert Thickness (S) | 0.126" | Application | | Drilling | |
| Inscribed Circle Diameter (IC) | 0.244" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Corner Radius (RE) | 0.016" | Cutting Edge Material | Carbide |
| Shape | 90° Square | Tool Type | Indexable drilling inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
Family Description
Precision ground inserts with DT general use chipformer and a wiper, for MNC large diameter drills
