Brand: Iscar

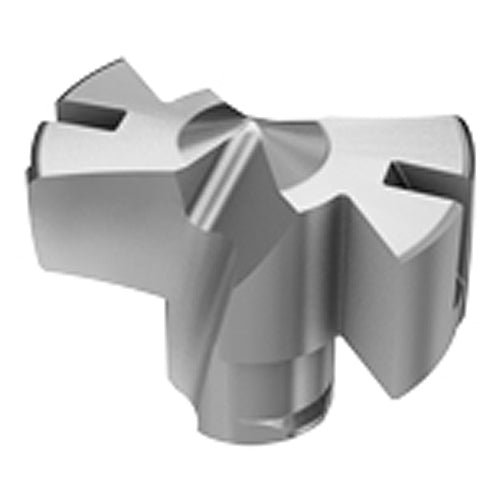

Iscar EH565509963 FCP 0551 IC908
SKU: FTS-EH565509963
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH565509963 FCP 0551 IC908Full Description
| Cutting Diameter (DC) | 0.551" | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Insert Thickness (S) | 0.217" |
| Application | | Chamfering | Drilling | Gundrill | | Point Length (PL) | 0.05157" |
| Grade | IC908 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Protruding Length (LPR) | 0.241" | Pilot Drill Diameter (PDD) | 0.15" |
| Insert Seat Size Code (SSC) | 14.0 | Corner Chamfer Width (CHW) | 0.027" |
| Functional Length (LF) | 0.189" | Chamfer Angle | 60 Degrees |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Family Description
Exchangeable flat bottom drilling heads for DCN drills, for machining ISO P and ISO K materials. The drill head is designed with a honed cutting edge, available in increments of .004" .
For nearly flat bottom hole applications
