Brand: Iscar

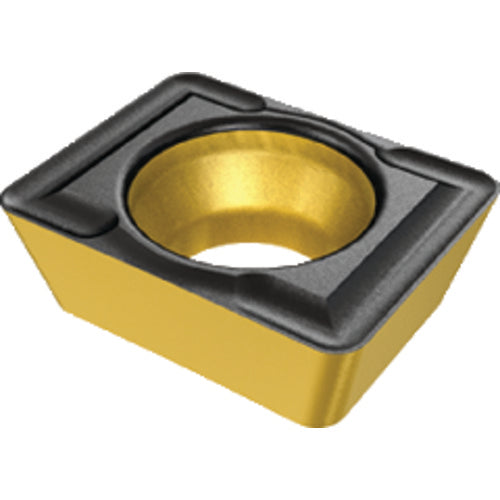

Iscar EH565507954 AOMT 040204-90DT IC808
SKU: FTS-EH565507954
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH565507954 AOMT 040204-90DT IC808Full Description
| Insert Thickness (S) | 0.063" | Application | | Drilling | |
| Inscribed Circle Diameter (IC) | 0.157" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Corner Radius (RE) | 0.0157" | Cutting Edge Material | Carbide |
| Shape | 85° Parallelogram | Tool Type | Indexable drilling inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
Family Description
Inserts for DR drills with DT chipformer, for general applications at medium-to-high feed rates and HD chipformer for carbon steel and soft materials.
Used on .472-.531" DR drills
