Brand: Iscar

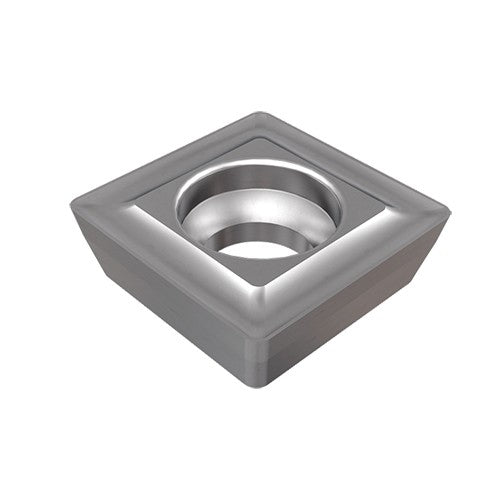

Iscar EH565507925 SOMT 09T306-DT IC8080
SKU: FTS-EH565507925
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH565507925 SOMT 09T306-DT IC8080Full Description
| Insert Thickness (S) | 0.15" | Application | | Drill Mill | Drilling | |
| Inscribed Circle Diameter (IC) | 0.354" | Applicable Material | | Steel | Cast Iron | |
| Corner Radius (RE) | 0.0236" | Cutting Edge Material | Carbide |
| Shape | 90° Square | Tool Type | Indexable drilling inserts |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | IC8080 | Body Material | Carbide |
Family Description
Inserts with a DT chipformer for DR drills, for general applications at medium-to-high feed rates.
