Brand: Iscar

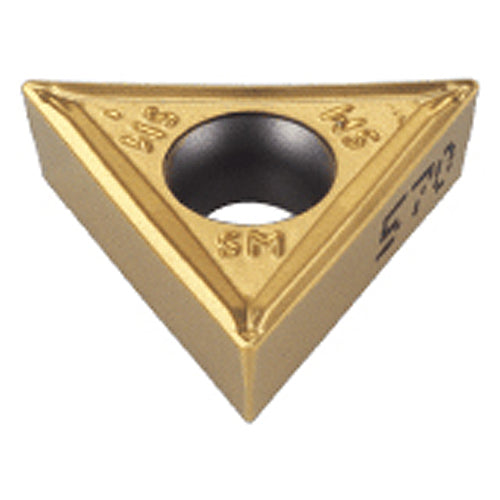

Iscar EH5568605 TPMR 322 IC830
SKU: FTS-EH5568605
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH5568605 TPMR 322 IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Tool Type | Turn Positive Inserts |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Insert | Int. 60° Triangle 91° Approach | | Min D.O.C. | 0.039" |
| Insert Style | TPMR | Depth of Cut Maximum (APMX) | 0.157" |
| Corner Radius (RE) | 0.0315" | Min. Turning Feed (ft(min)) | 0.0059 " /rev |
| Insert Size | 322 | Max. Turning Feed (ft(max)) | 0.0138 " /rev |
| Cutting Edge Length (L) | 0.65" | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 1/8" | Chip Breaker Type | R |
| Inscribed Circle Diameter (IC) | 3/8" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | AlTiN+TiN | Series/List # | TPMR 322-R |
| Grade | IC830 | Body Material | Carbide |
Family Description
11° positive triangular inserts. Positive chipformer, low cutting forces. Used for internal turning and for finishing.
For dimensions and tolerances, see more info.
