Brand: Iscar
Iscar EH5568602 TNMG 432-GN IC830
SKU: FTS-EH5568602
MPN:

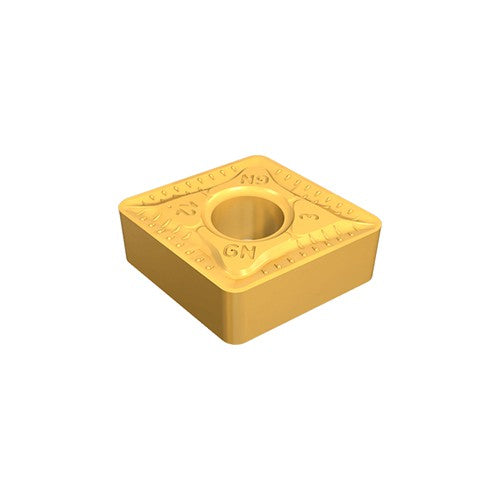

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH5568602 TNMG 432-GN IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 60° Triang.93° Appr. Open | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Insert | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Min D.O.C. | 0.039" |
| Insert Style | TNMG | Depth of Cut Maximum (APMX) | 0.157" |
| Corner Radius (RE) | 0.0315" | Min. Turning Feed (ft(min)) | 0.0071 " /rev |
| Insert Size | 432 | Max. Turning Feed (ft(max)) | 0.0157 " /rev |
| Cutting Edge Length (L) | 0.866" | Chip Breaker Type | GN |
| Insert Thickness (S) | 0.187" | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2" | Shape | 60° Triangle |
| Cutting Edge Material | Carbide | Series/List # | TNMG 432-GN |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Family Description
Double-sided triangular inserts, secure cutting edge, for medium- and semi-roughing on steel and cast iron.
For dimensions and tolerances, see more info.
