Brand: Iscar

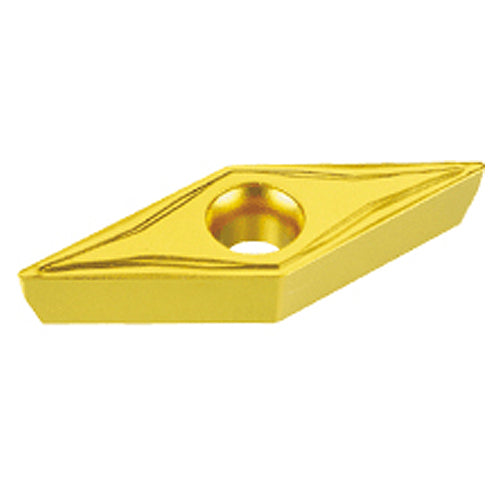

Iscar EH5568590 VCMT 331-14 IC830
SKU: FTS-EH5568590
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH5568590 VCMT 331-14 IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Fixing Hole Diameter (D1) | 0.173" |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Insert | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 95° Approach | | Min D.O.C. | 0.039" |
| Insert Style | VCMT | Depth of Cut Maximum (APMX) | 0.197" |
| Corner Radius (RE) | 0.0157" | Min. Turning Feed (ft(min)) | 0.0047 " /rev |
| Insert Size | 331 | Max. Turning Feed (ft(max)) | 0.0098 " /rev |
| Cutting Edge Length (L) | 0.654" | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.187" | Chip Breaker Type | 14 |
| Inscribed Circle Diameter (IC) | 3/8" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 35° Rhombic |
| Coating | AlTiN+TiN | Series/List # | " VCMT 331-14 |
| Grade | IC830 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
Family Description
35° rhombic 7° positive flank inserts used for semi-finish and finish turning. Chip breaking in moderate feed range. Pasitive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys.
For dimensions and tolerances, see more info.
