Brand: Iscar

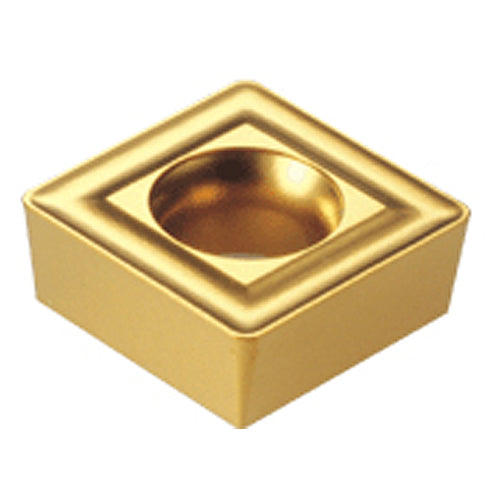

Iscar EH5568584 SCMT 432-19 IC830
SKU: FTS-EH5568584
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH5568584 SCMT 432-19 IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Fixing Hole Diameter (D1) | 0.217" |
| Application | | Chamfering & Bottom Deburring | Countersinking | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Insert | Int. 90° Square 75° Approach | Slanted Shoulder & Chamfer | | Min D.O.C. | 0.118" |
| Insert Style | SCMT | Depth of Cut Maximum (APMX) | 0.315" |
| Corner Radius (RE) | 0.0315" | Min. Turning Feed (ft(min)) | 0.0039 " /rev |
| Insert Size | 432 | Max. Turning Feed (ft(max)) | 0.0118 " /rev |
| Cutting Edge Length (L) | 1/2" | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.187" | Chip Breaker Type | 19 |
| Inscribed Circle Diameter (IC) | 1/2" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 90° Square |
| Coating | AlTiN+TiN | Series/List # | " SCMT 432-19 |
| Grade | IC830 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
Family Description
Square 7° positive rake inserts for semi-roughing applications. Strong cutting edge, used at medium to high feeds.
For dimensions and tolerances, see more info.
