Brand: Iscar

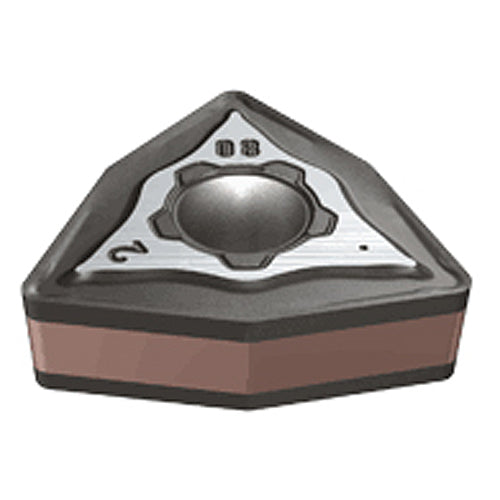

Iscar EH5567771 WNMG 433-M3M IC830
SKU: FTS-EH5567771
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH5567771 WNMG 433-M3M IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Insert | Int. 80° Trigon 95° Approach | | Min D.O.C. | 0.02" |
| Insert Style | WNMG | Depth of Cut Maximum (APMX) | 0.197" |
| Corner Radius (RE) | 0.0472" | Min. Turning Feed (ft(min)) | 0.0079 " /rev |
| Insert Size | 433 | Max. Turning Feed (ft(max)) | 0.0236 " /rev |
| Cutting Edge Length (L) | 0.343" | Chip Breaker Type | M3M |
| Insert Thickness (S) | 0.187" | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2" | Shape | 80° Trigon |
| Cutting Edge Material | Carbide | Series/List # | WNMG 433-M3M |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Family Description
Double-sided trigon inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life.
For dimensions and tolerances, see more info.
