Brand: Iscar

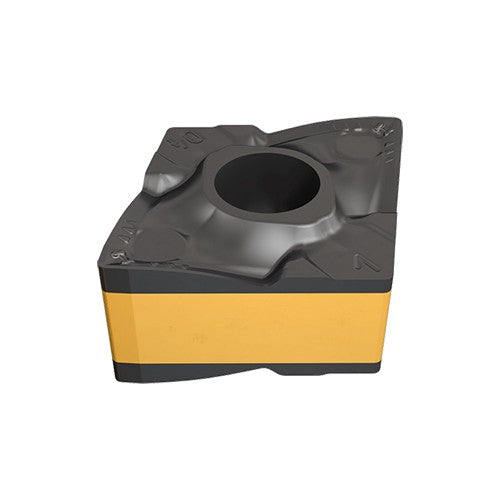

Iscar EH5509547 CNMX 452-M4MW IC830
SKU: FTS-EH5509547
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH5509547 CNMX 452-M4MW IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Diamond 95° Approach | Insert | Int. 80° Diamond 95° Approach | | Fixing Hole Diameter (D1) | 0.203" |
| Insert Style | CNMX | Min D.O.C. | 0.039" |
| Corner Radius (RE) | 0.0315" | Depth of Cut Maximum (APMX) | 0.236" |
| Insert Size | 452 | Min. Turning Feed (ft(min)) | 0.0079 " /rev |
| Cutting Edge Length (L) | 0.508" | Max. Turning Feed (ft(max)) | 0.0236 " /rev |
| Insert Thickness (S) | 0.267" | Chip Breaker Type | HMW |
| Inscribed Circle Diameter (IC) | 1/2" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | AlTiN+TiN | Series/List # | CNMX 452-HMW |
| Grade | IC830 | Body Material | Carbide |
Family Description
The inserts feature a very positive radial helical cutting edge and a positive rake angle, which reduces the cutting forces. A wiper corner design produces high surface finish even at high feed rates. Used for heavy machining applications.
For dimensions and tolerances, see more info. PCLNR/L...X and A..-PCLNR/L-X are most recommended as they were designed especially for this insert.
