Brand: Iscar

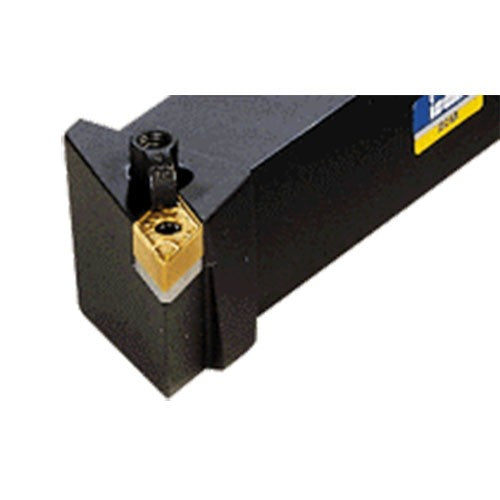

Iscar EH3606575 MDJNL 10-3
SKU: FTS-EH3606575
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH3606575 MDJNL 10-3Full Description
| Shank Height (H) | 5/8" | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 5/8" | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Length (LF) | 4" | Body Material | Steel |
| Head Length (LH) | 1.19" | Cutting Position | External |
| Functional Width (WF) | 3/4" | Clamping System | CL5 |
| Inscribed Circle Diameter (IC) | 3/8" | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | DN.. 3 | Style | MDJNL103 |
| Application | | Ext. 55° Diamond 93° Approach | |
Family Description
Comlock 93° lead angle holders for negative 55° inserts.
