Brand: Iscar

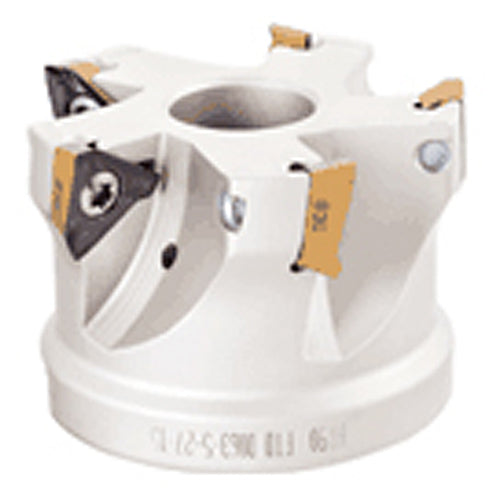

Iscar EH3106568 HM390 FTD D5.00-9-1.5-15

SKU: FTS-EH3106568
MPN: 3106568

Unit price per

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Iscar 3106568 HM390 FTD D5.00-9-1.5-15

Full Description

Cutting Diameter (DC/DCX)	5"	Master Insert Identification (MIID)	HM390 TDKT 1505PDR
Cutting Diameter (DC)	5"	Coolant Supply Property (CSP)	Through Hole
Cutting Item Count (CICT)	9	Body Material	Steel
Depth of Cut Maximum (APMX)	0.512"	Cutting Direction (HAND)	Right Hand
Connection Diameter Machine Side (DCONMS)	1-1/2"	Application	\| Facing \| Helical Interpolation \| Rampdown \| Shouldering \| Slotting \|
Overall Length (OAL)	2-1/2"	Measurement Type	Inch
Hub Diameter (DHUB)	3.22"	Tool Cutting Edge Angle (KAPR)	90 Degrees
Arbor Style	B	Tool Type	90° Facemills

Family Description

90° face mills carrying HM390 TDKT 1505 triangular inserts with 3 helical cutting edges.

When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by .04"
