Brand: Iscar

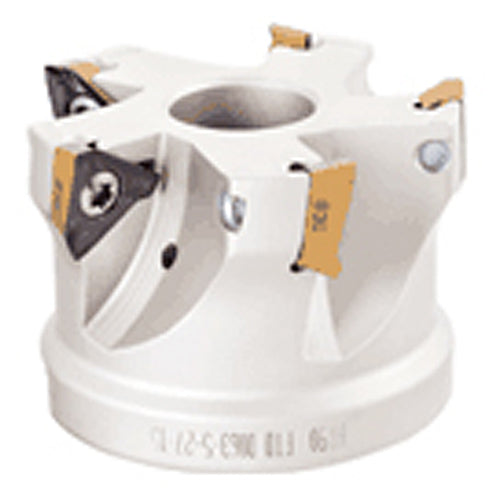

Iscar EH3106562 HM390 FTD D2.50-5-1.0-15
SKU: FTS-EH3106562
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3106562 HM390 FTD D2.50-5-1.0-15Full Description
| Cutting Diameter (DC/DCX) | 2-1/2" | Master Insert Identification (MIID) | HM390 TDKT 1505PDR |
| Cutting Diameter (DC) | 2-1/2" | Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.512" | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1" | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1-3/4" | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.34" | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Family Description
90° face mills carrying HM390 TDKT 1505 triangular inserts with 3 helical cutting edges.
When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by .04"
