Brand: Iscar

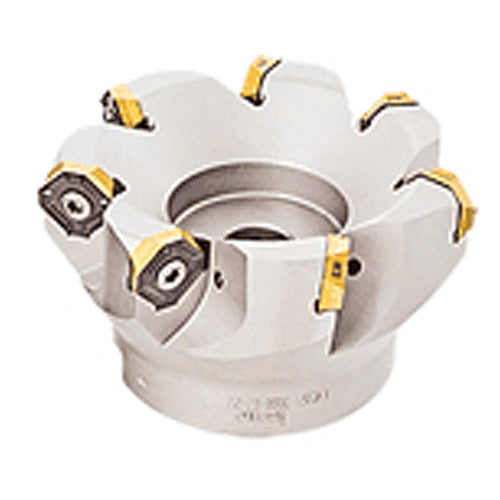

Iscar EH3106545 IQ845 FSYD2.0-04-0.75-R07
SKU: FTS-EH3106545
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH3106545 IQ845 FSYD2.0-04-0.75-R07Full Description
| Cutting Diameter (DC/DCX) | 2.37" | Arbor Style | A |
| Cutting Diameter (DC) | 2" | Master Insert Identification (MIID) | IQ845 SYHU 0704ADN |
| Cutting Diameter Maximum (DCX) | 2.37" | Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.18" | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4" | Application | | Facing | Slanted Shoulder & Chamfer | |
| Overall Length (OAL) | " 1-3/4" | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.77" | Tool Type | 45° Facemills |
Family Description
50° face mills carrying screw clamped square Inserts with 8 cutting edges. Feature very rigid dove tail clamping and positive pocket orientation.
